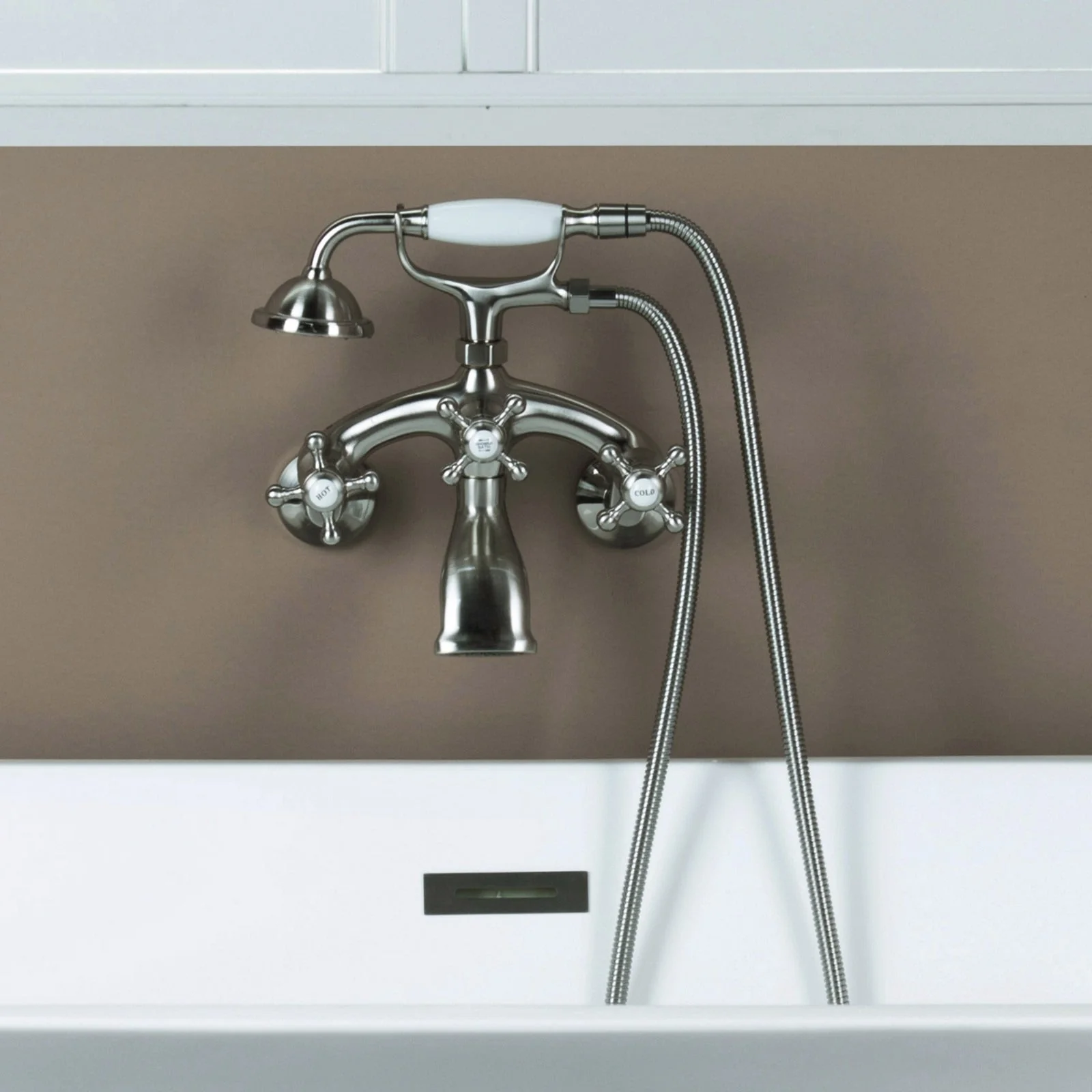

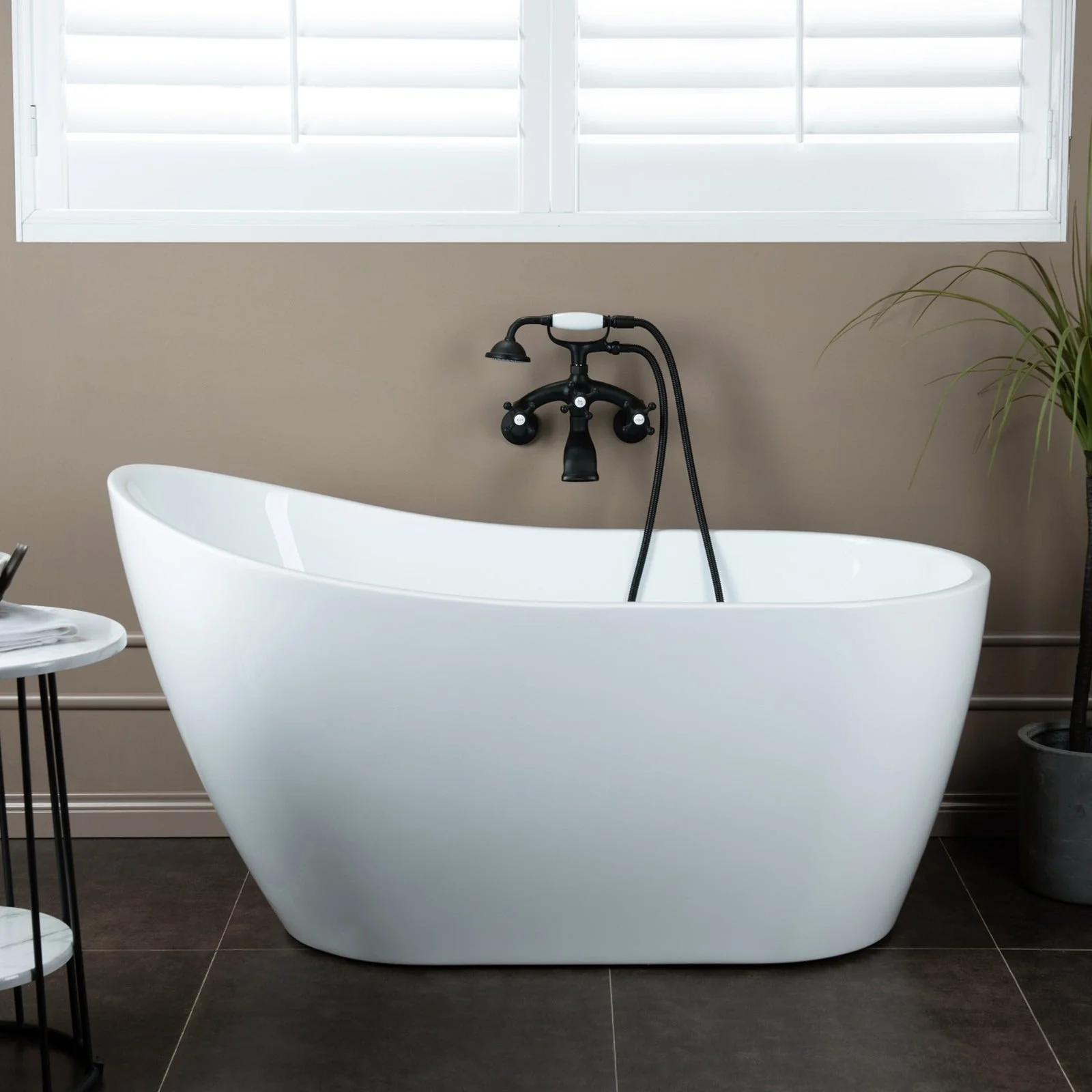

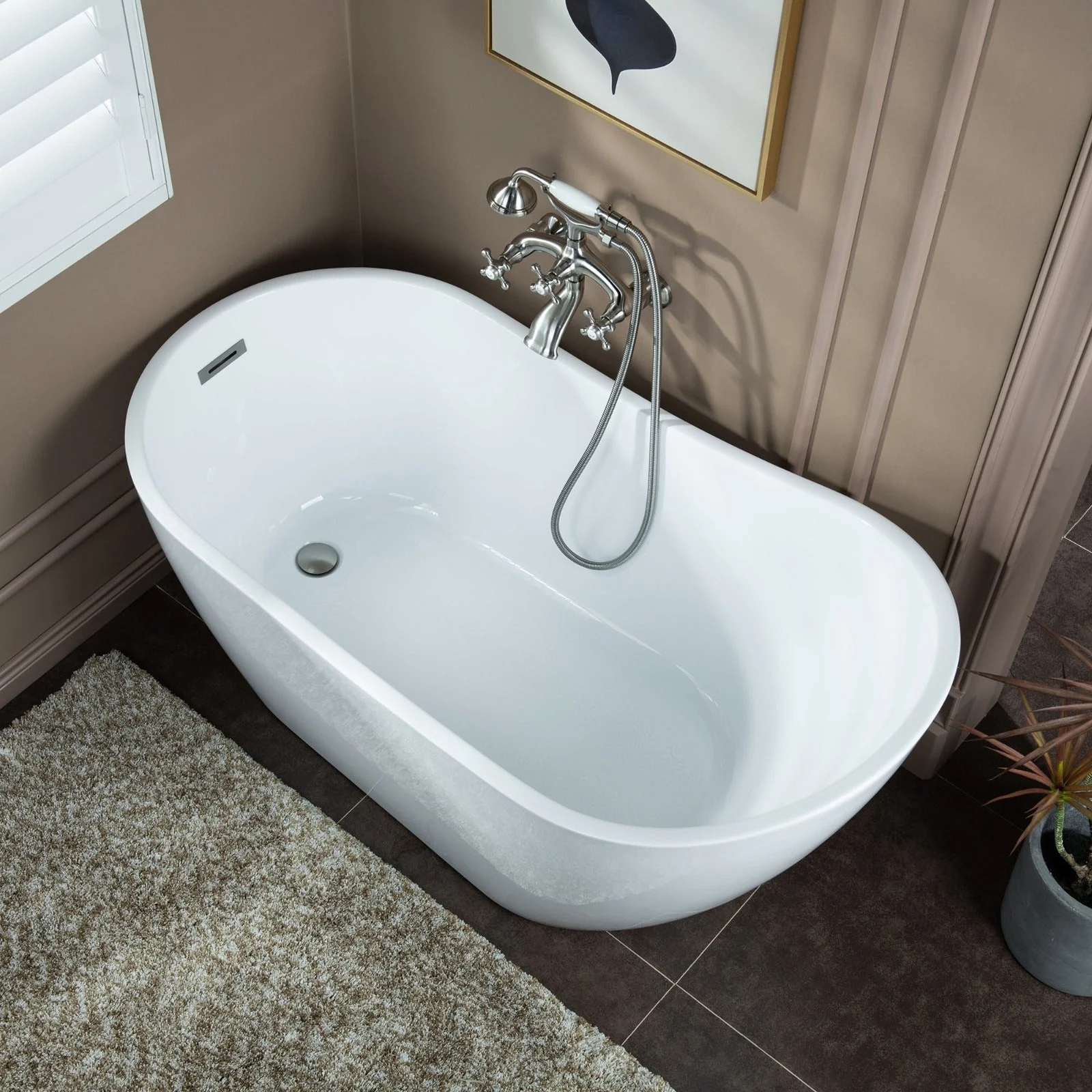

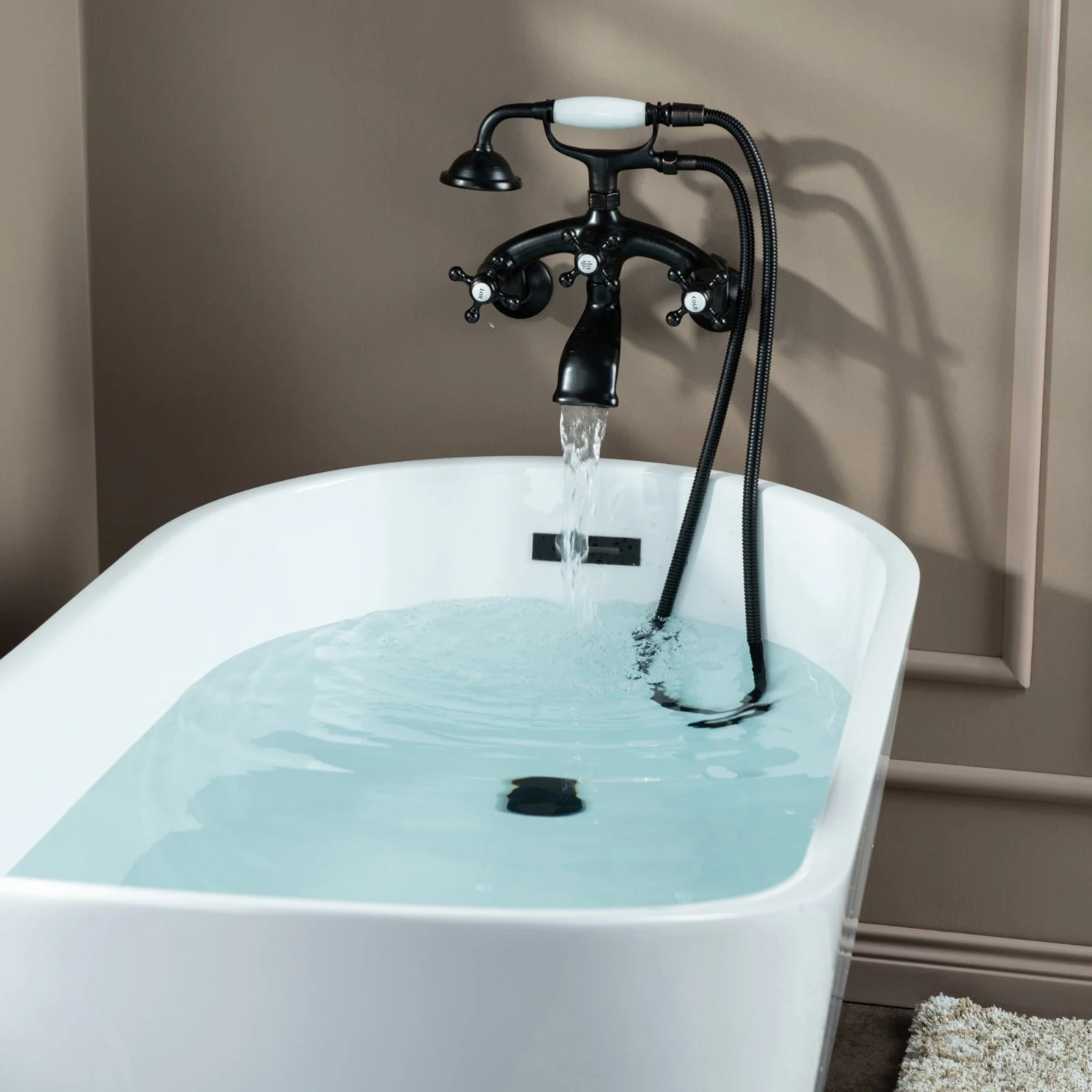

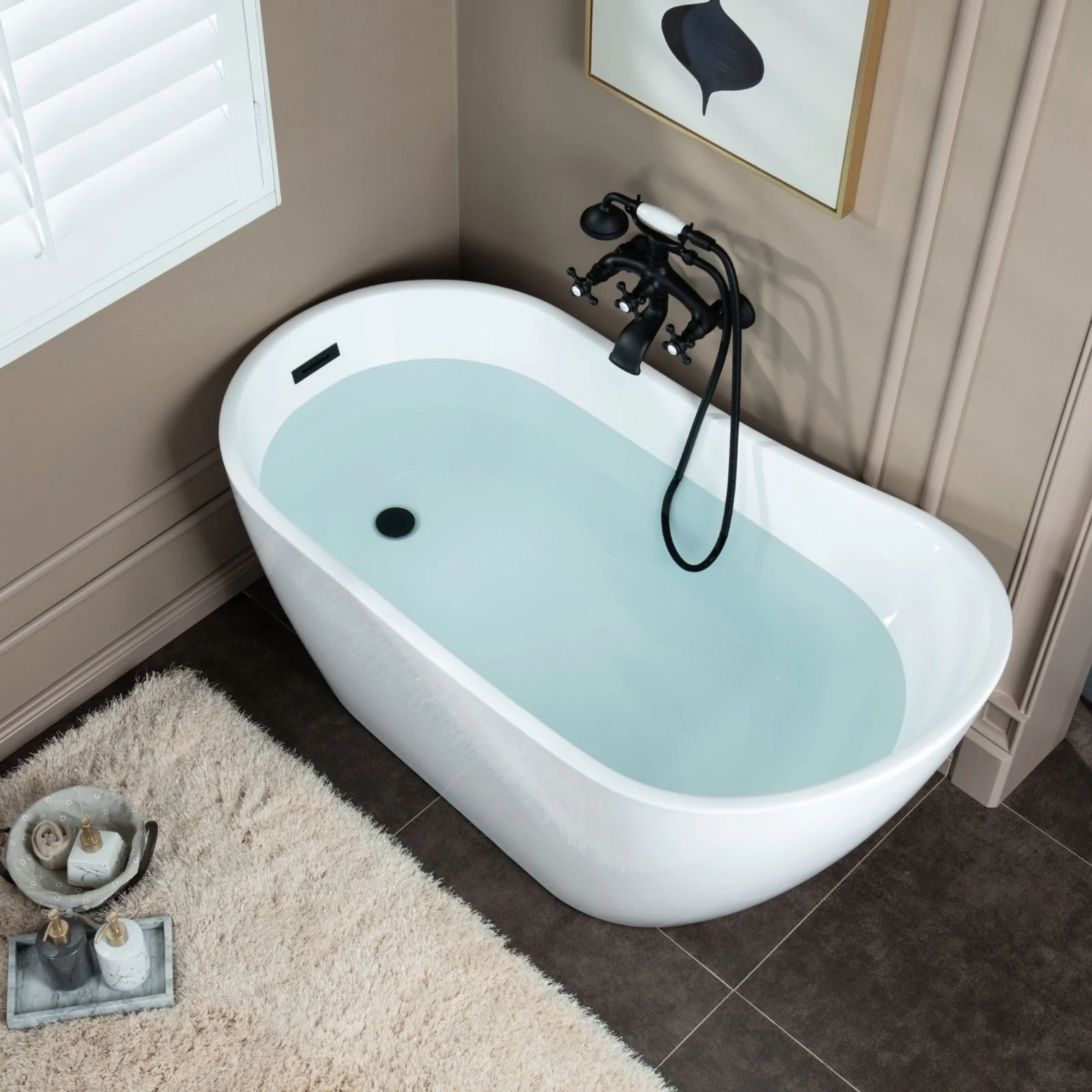

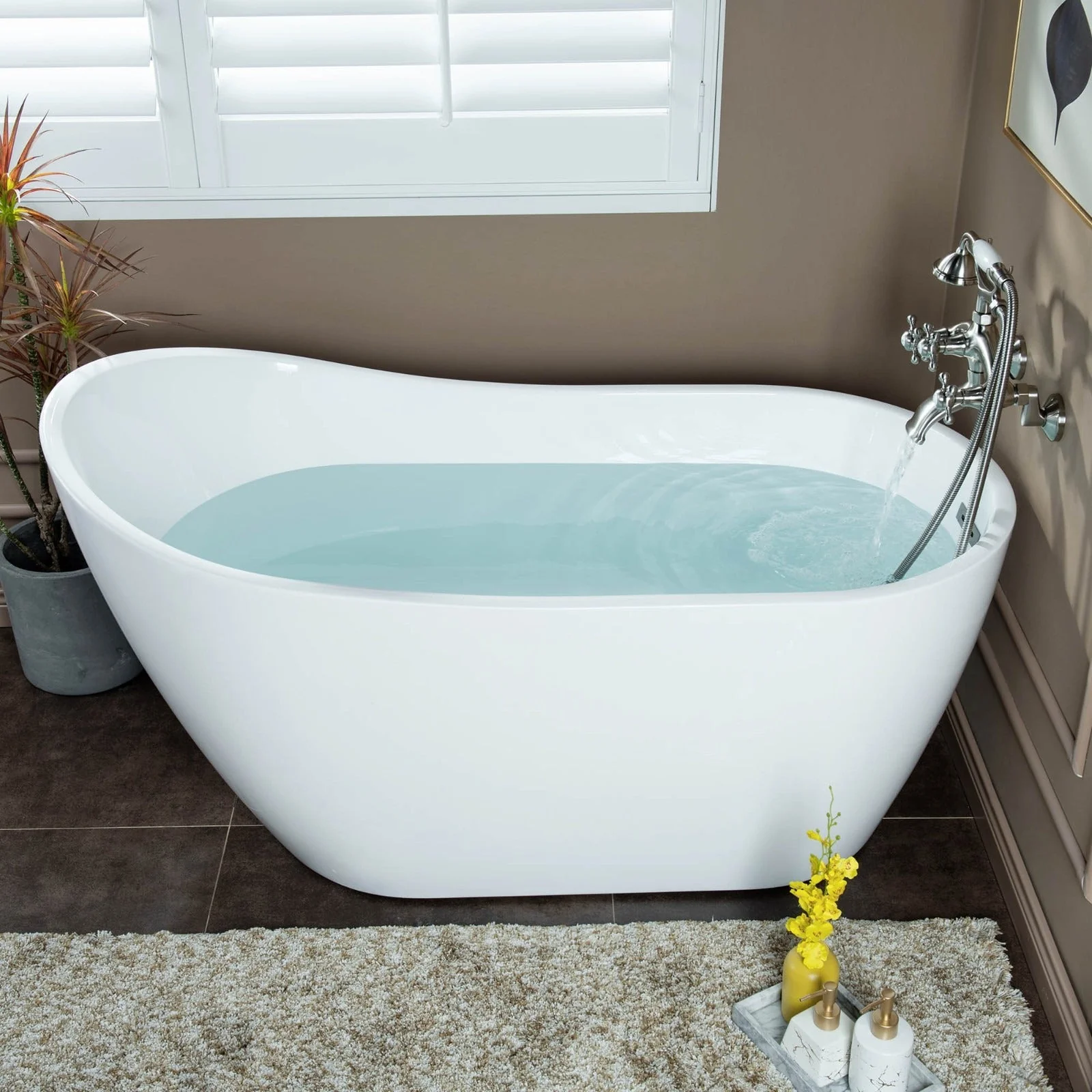

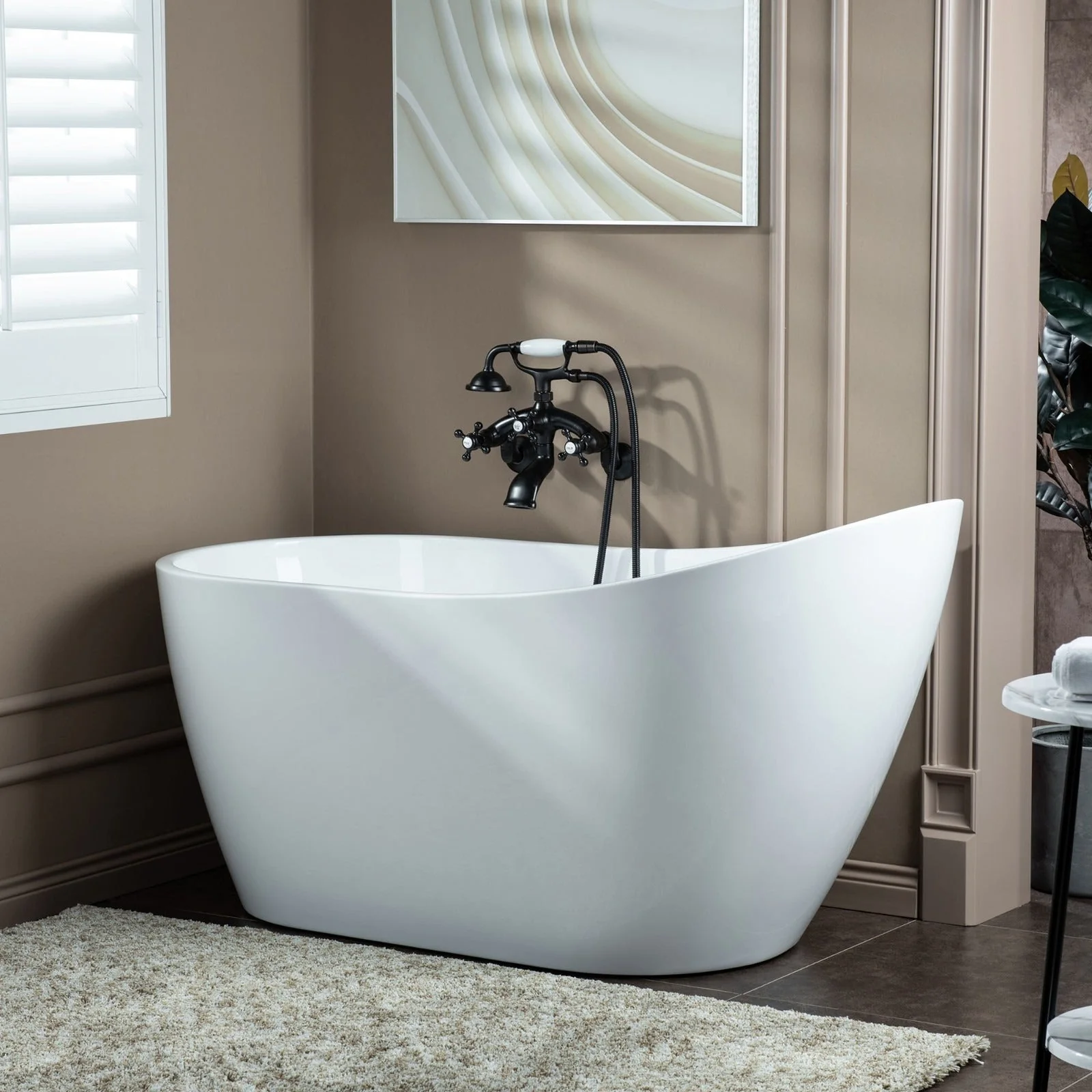

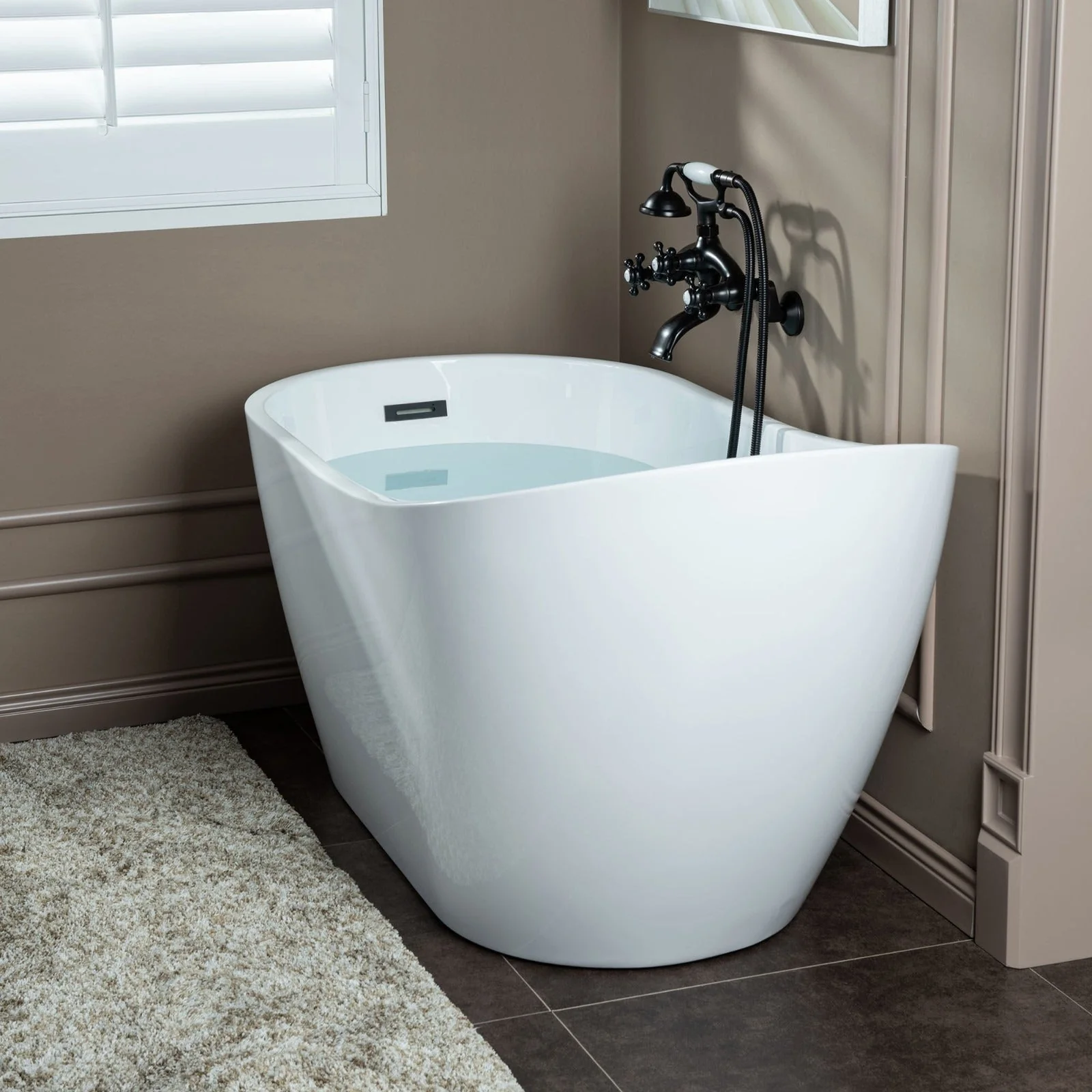

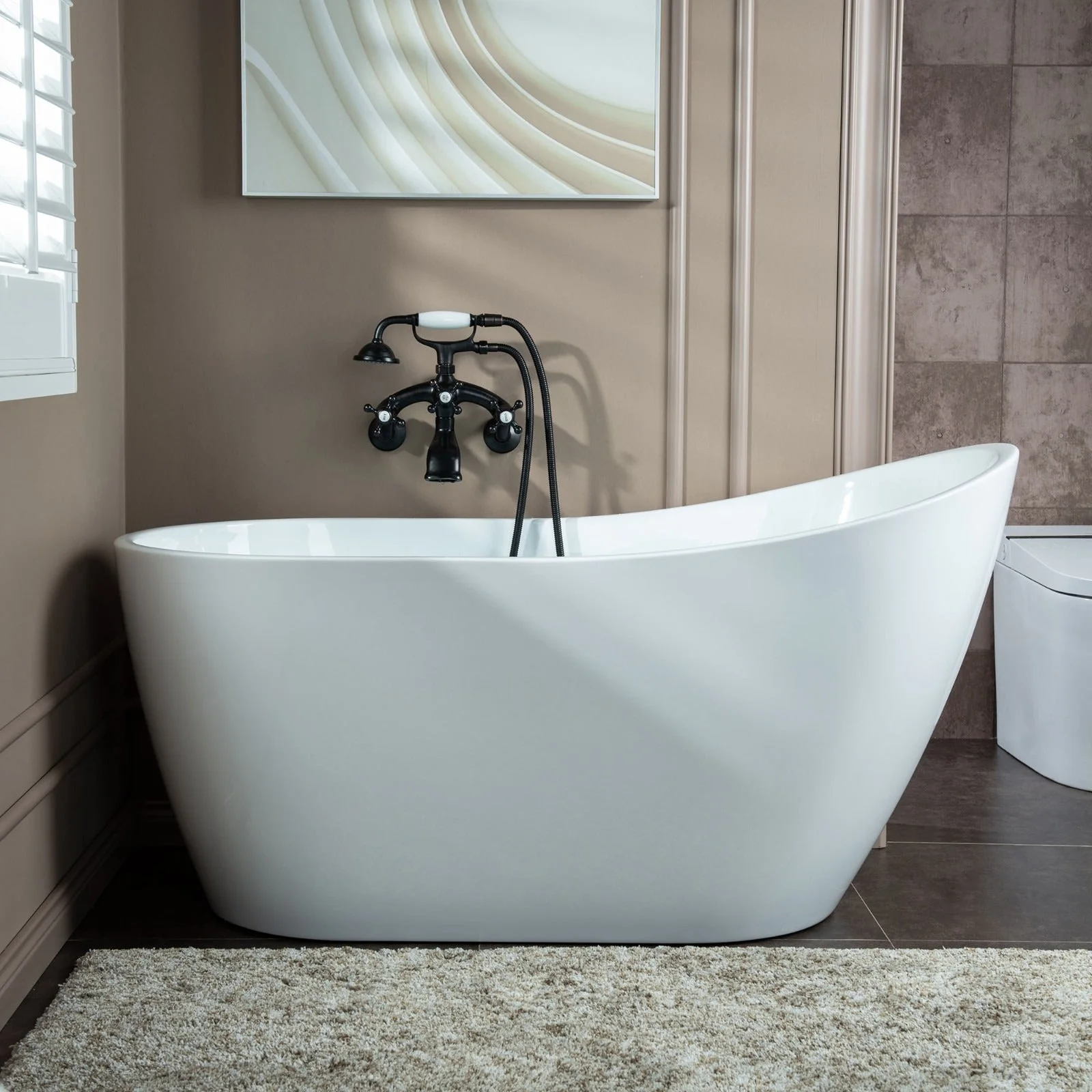

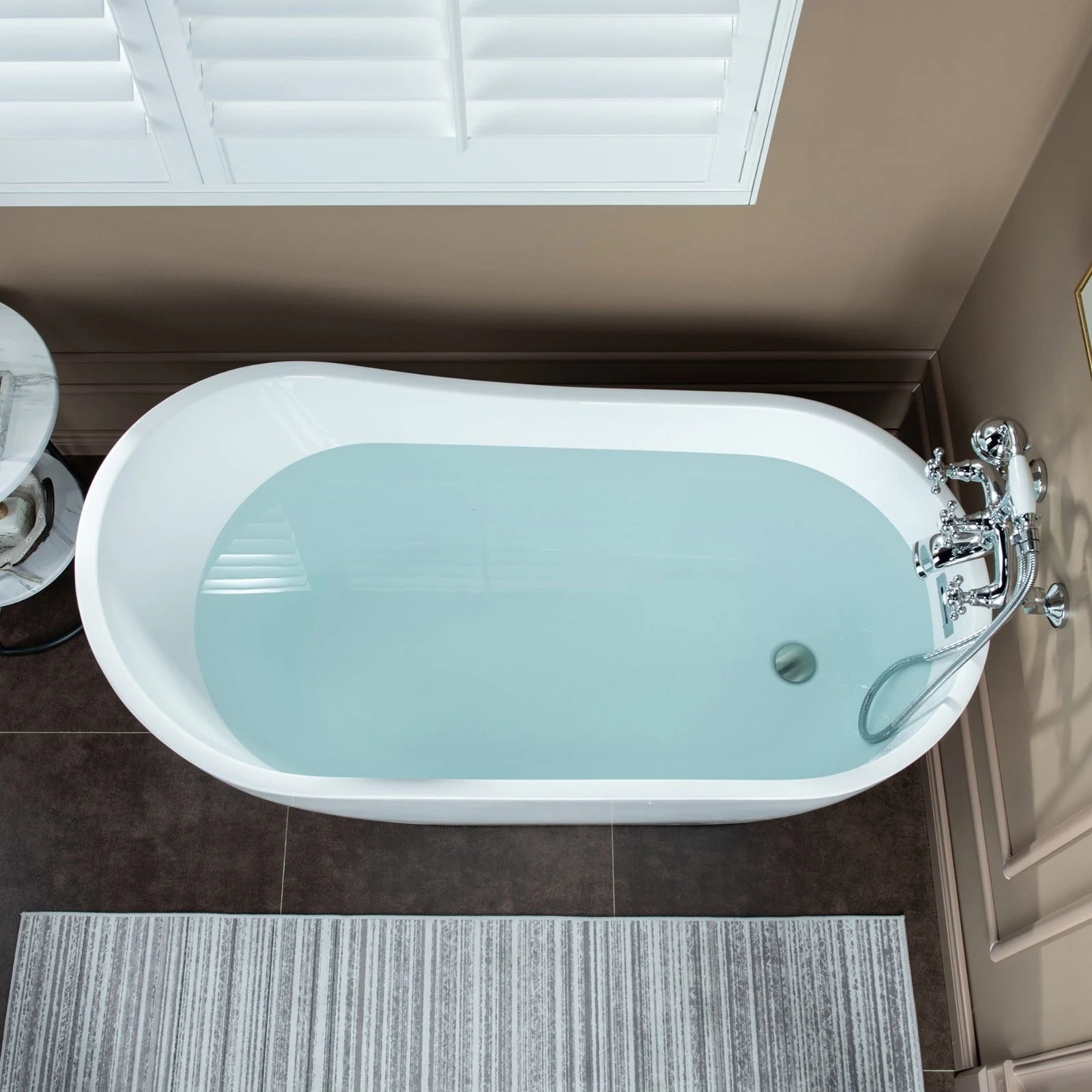

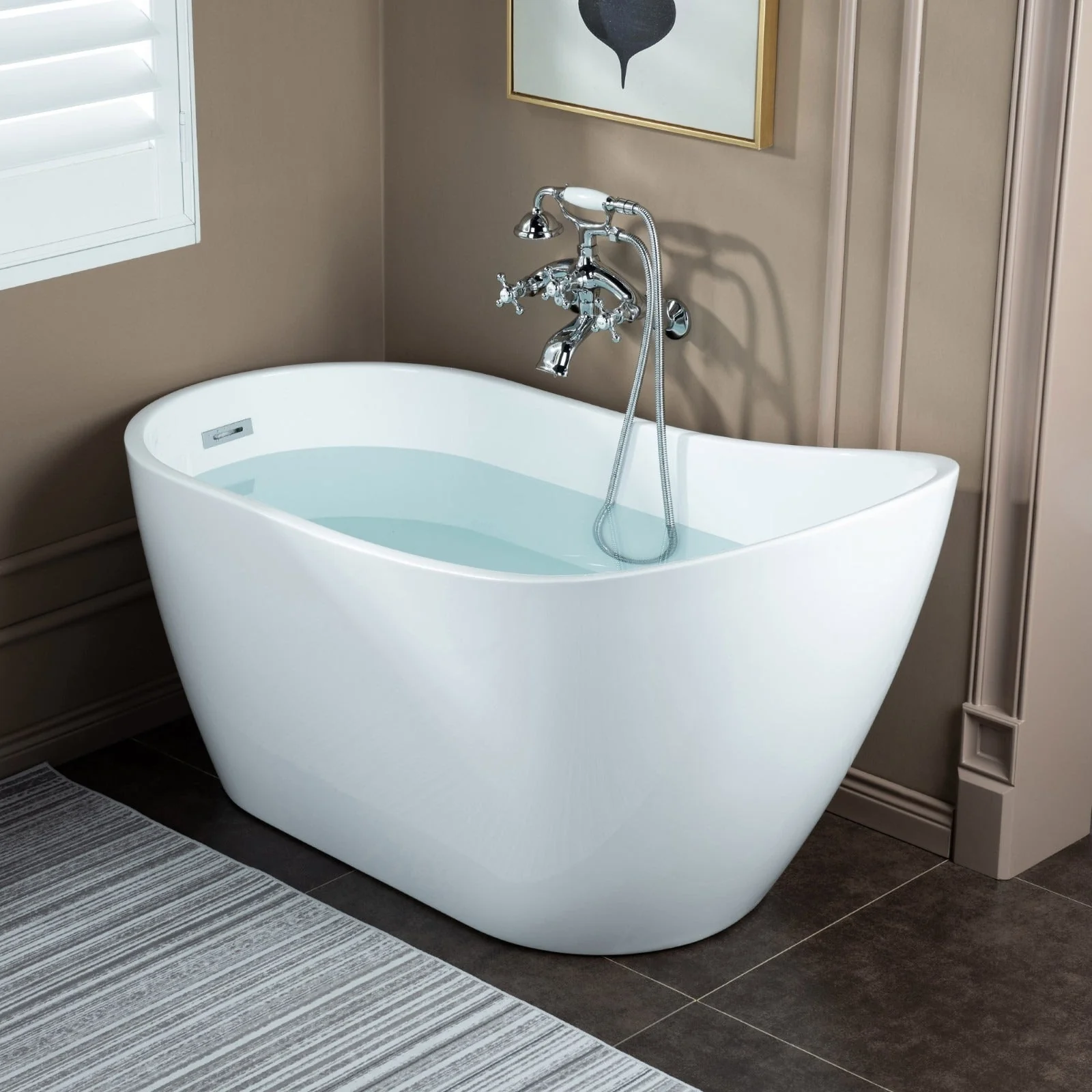

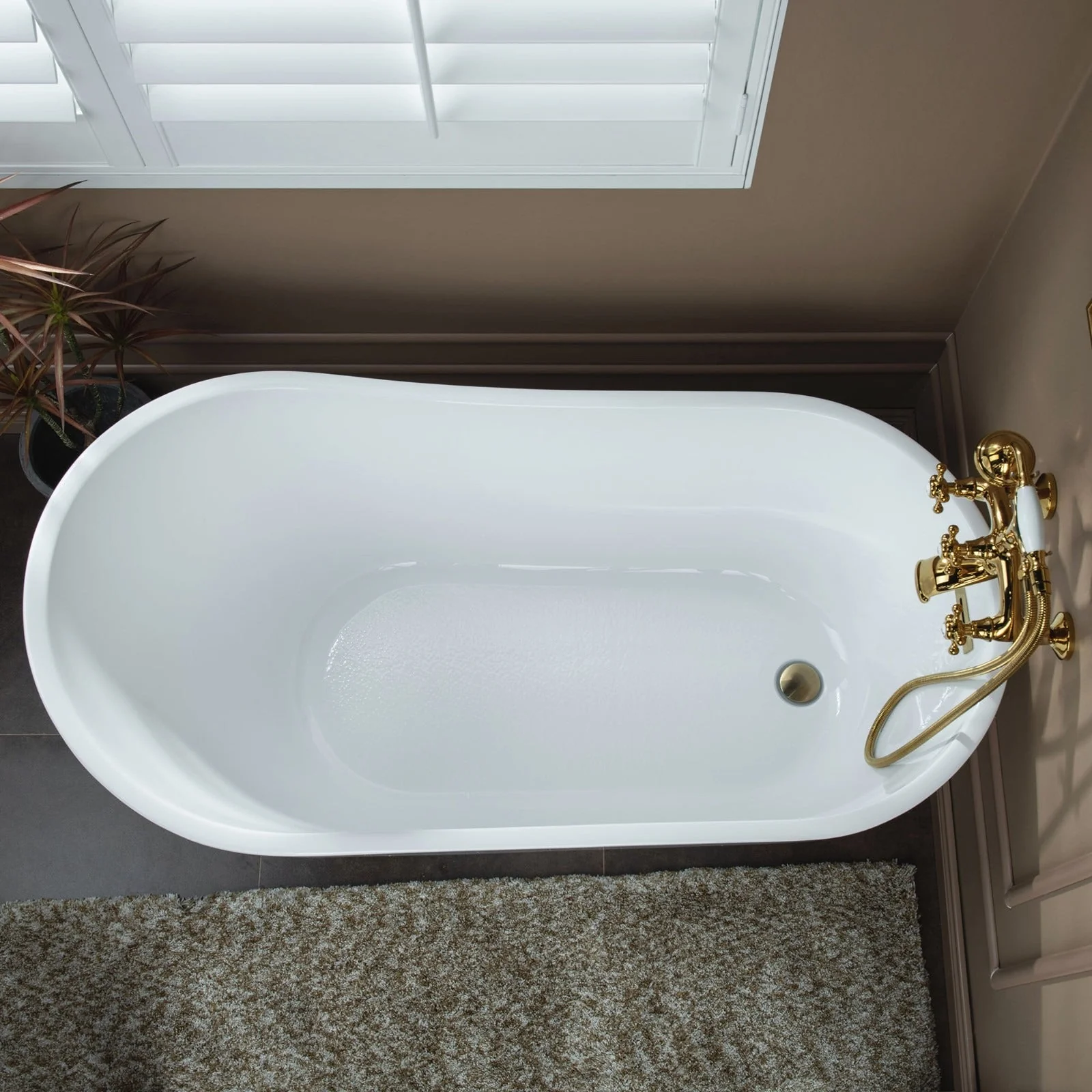

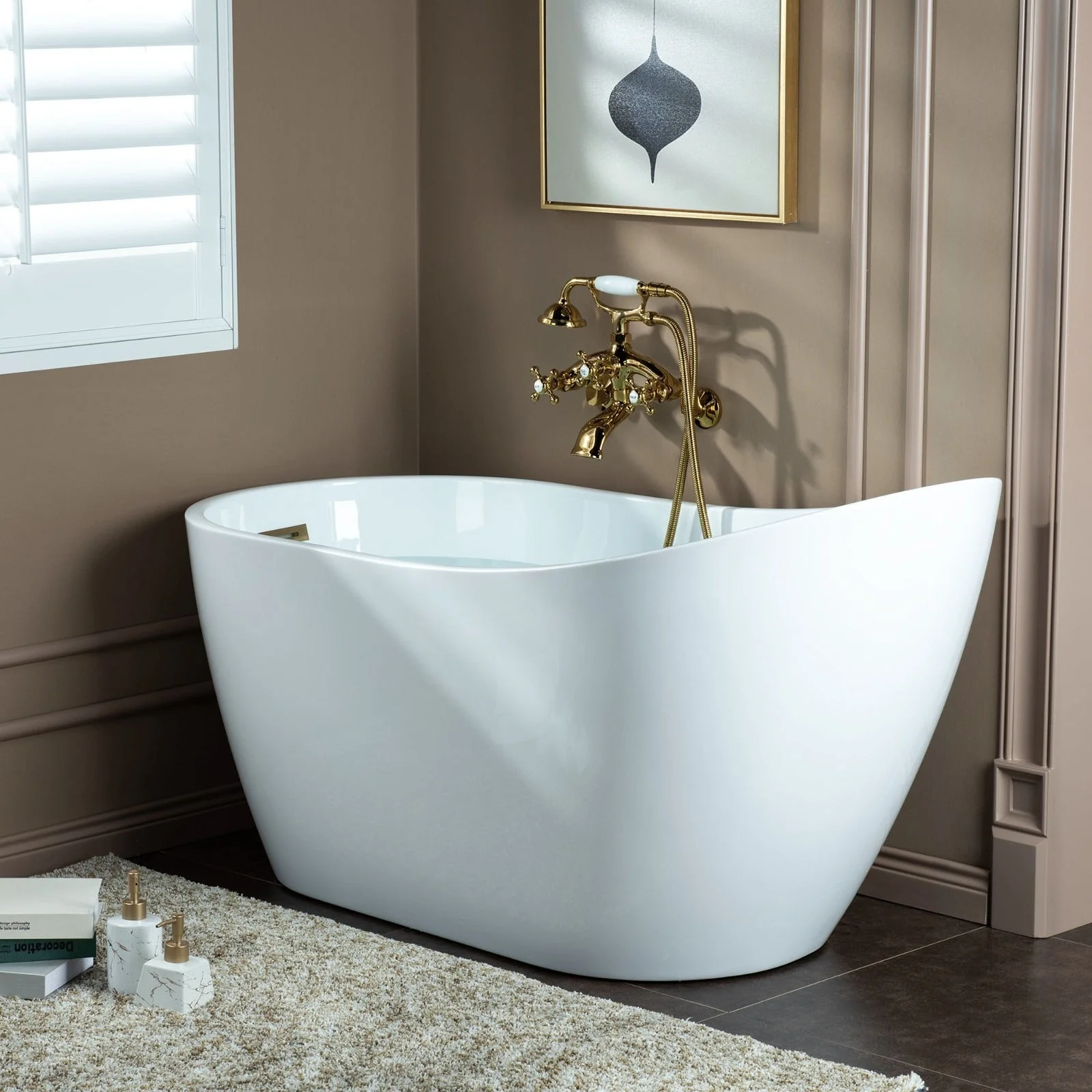

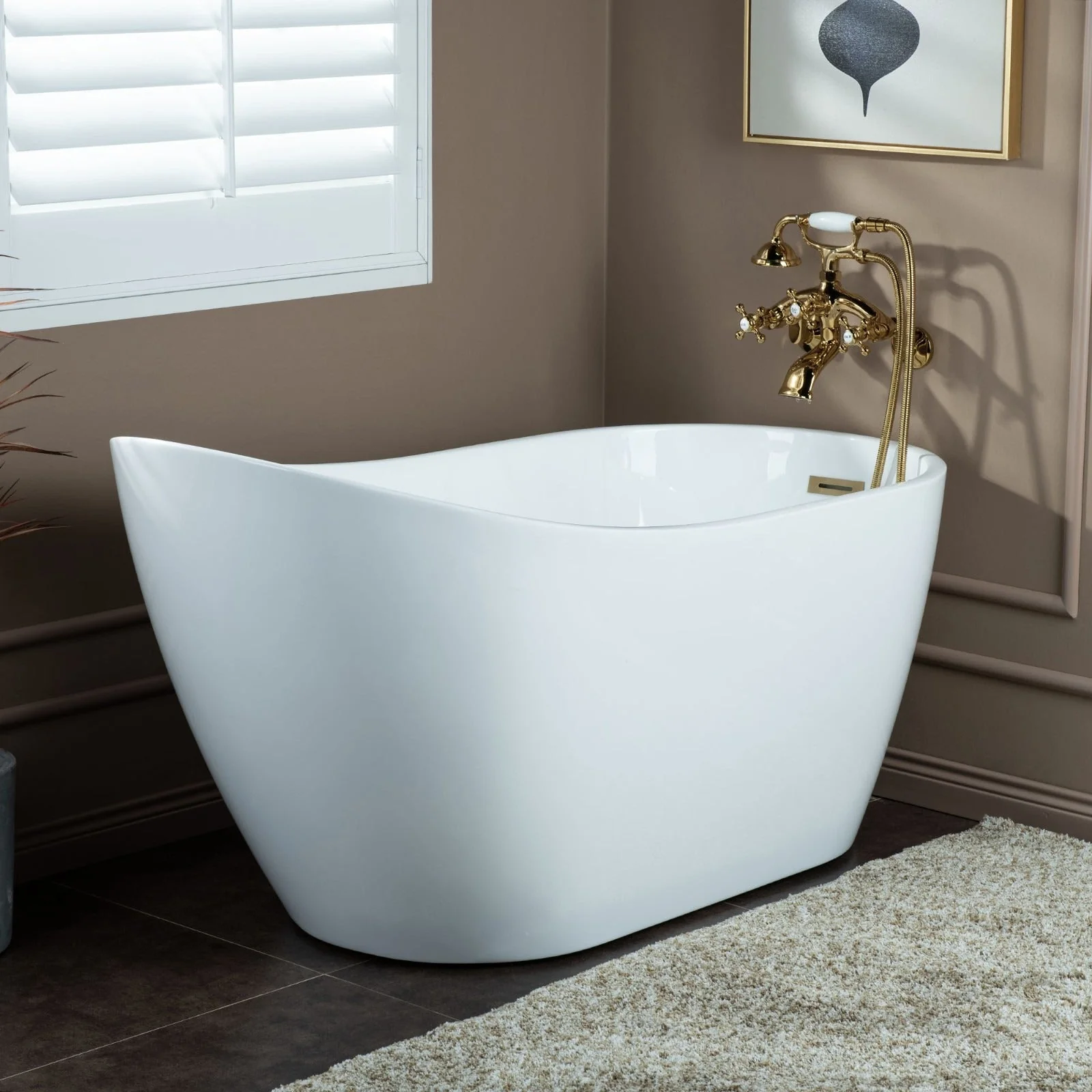

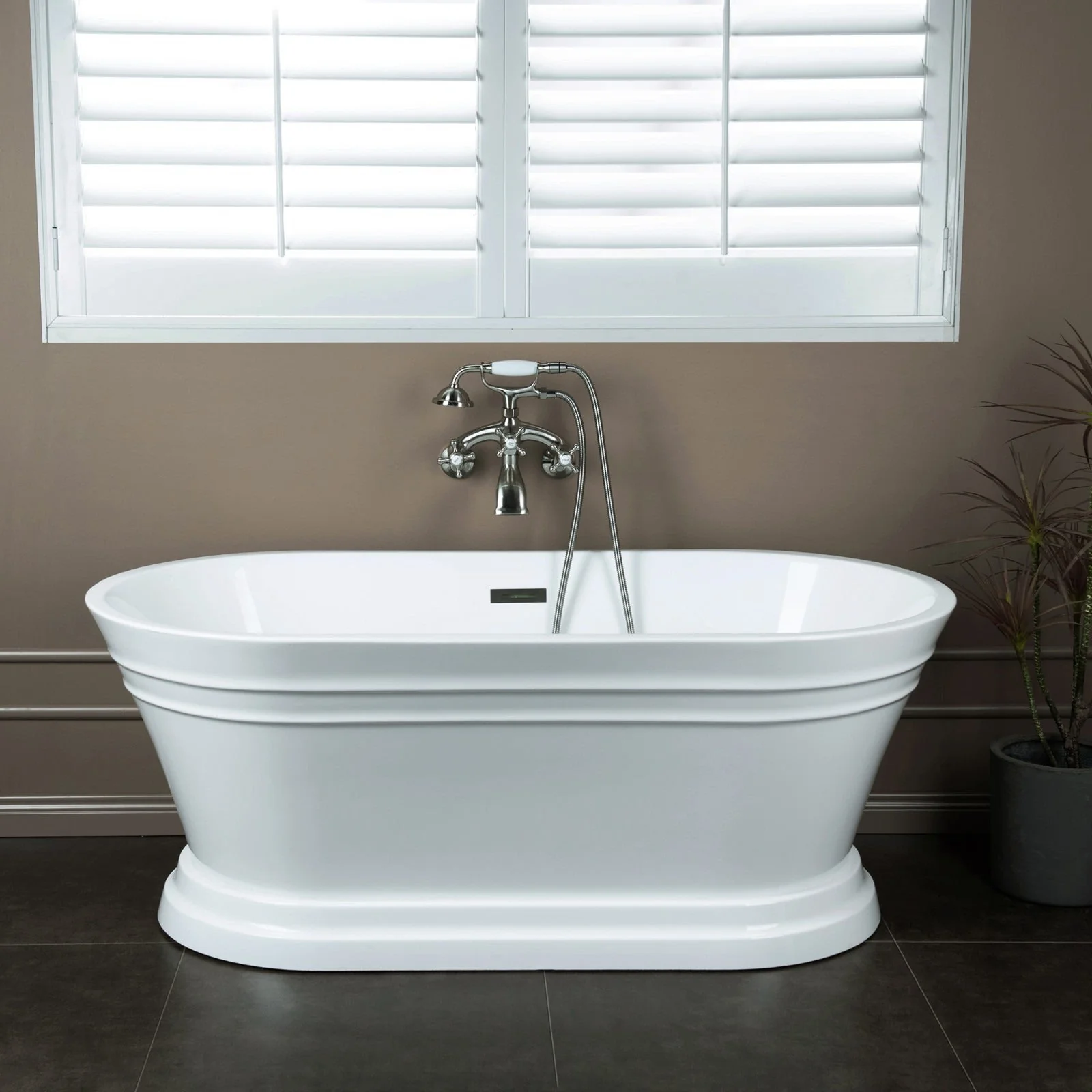

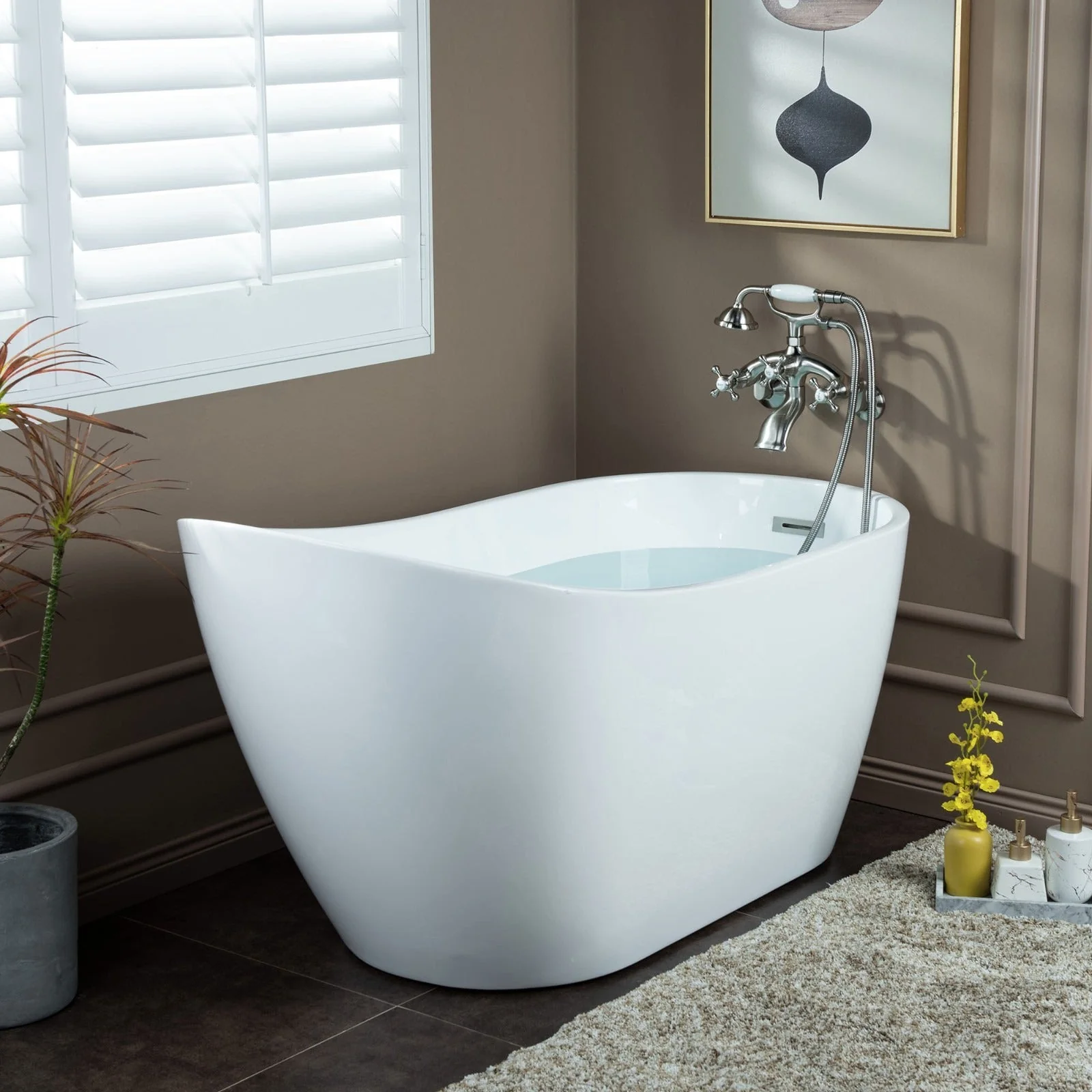

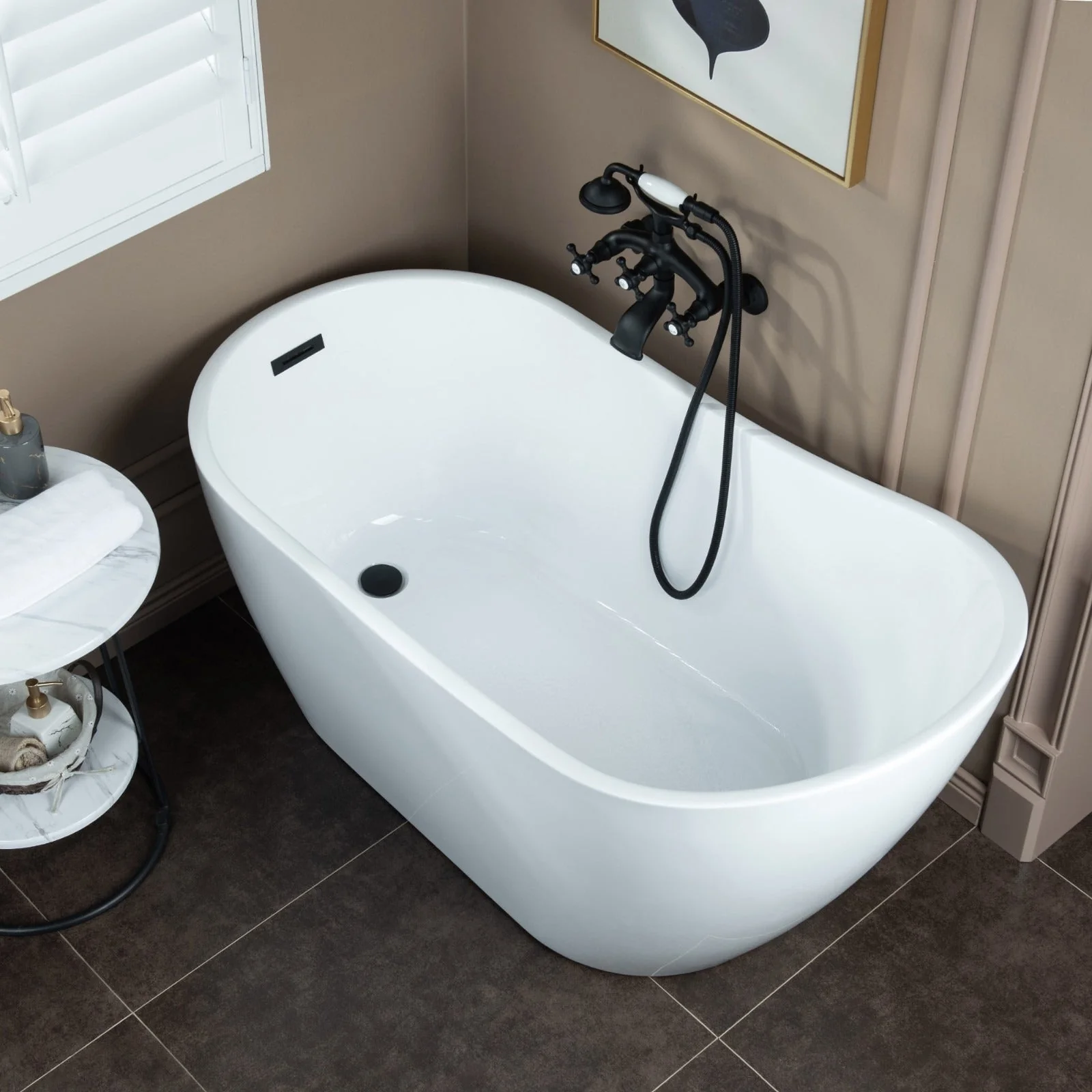

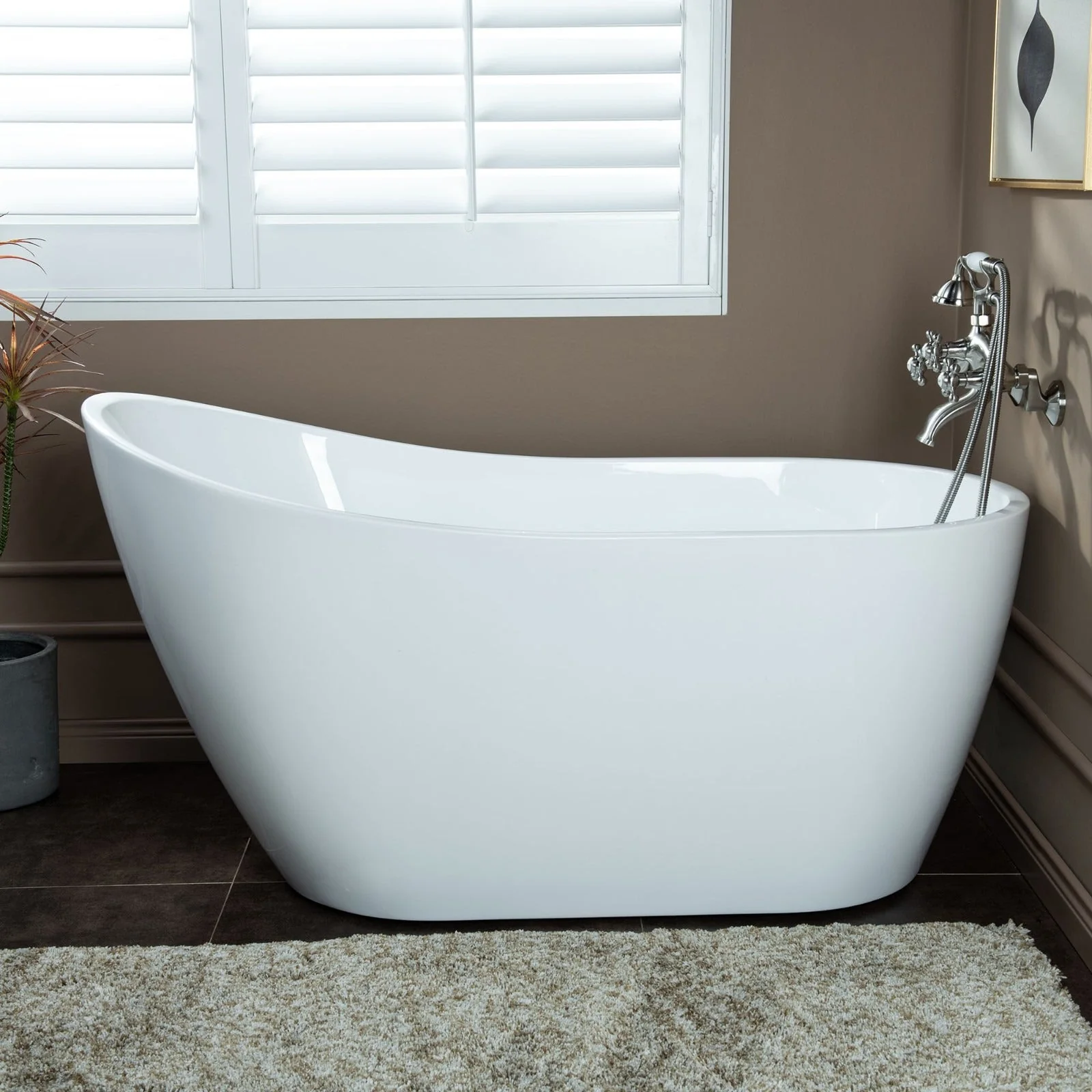

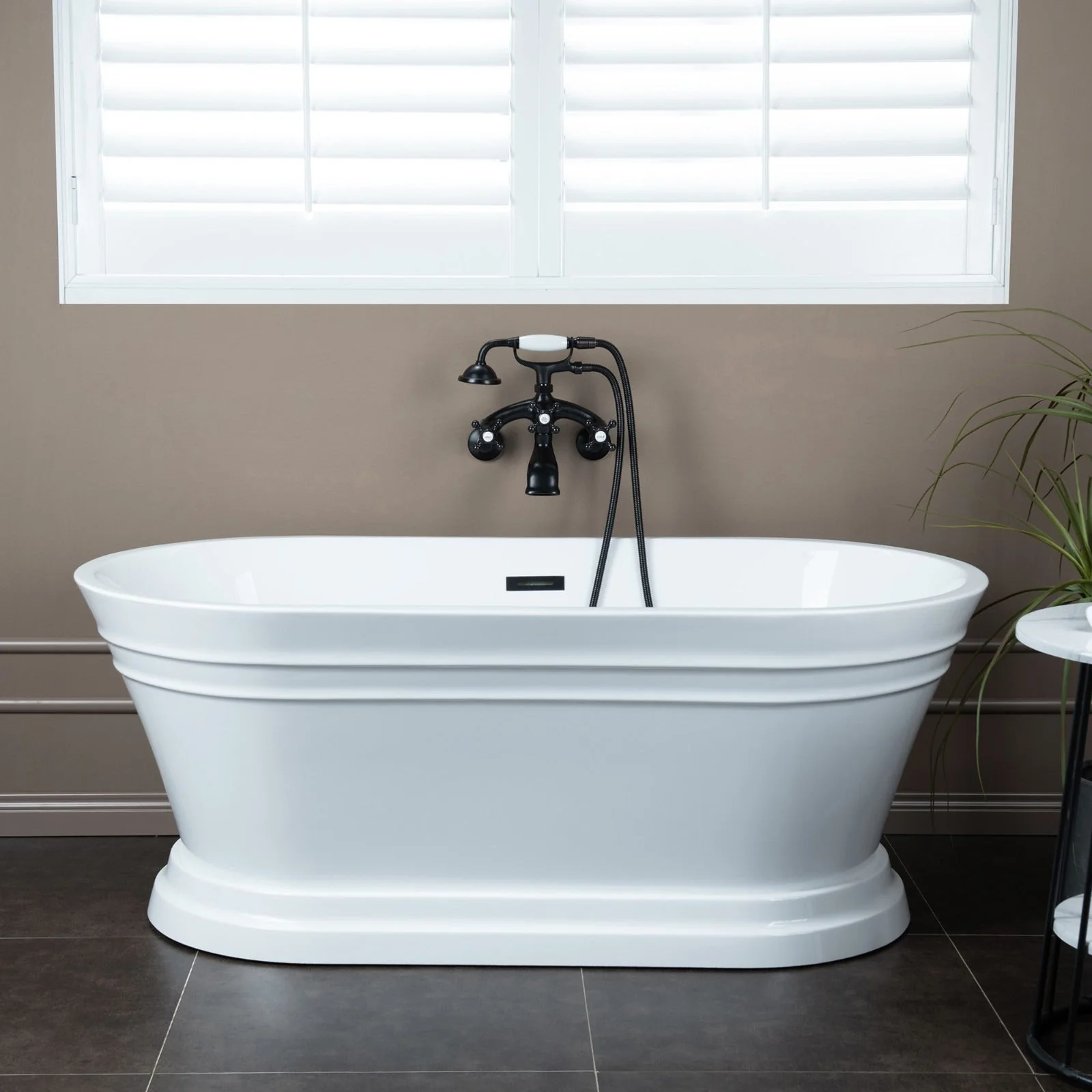

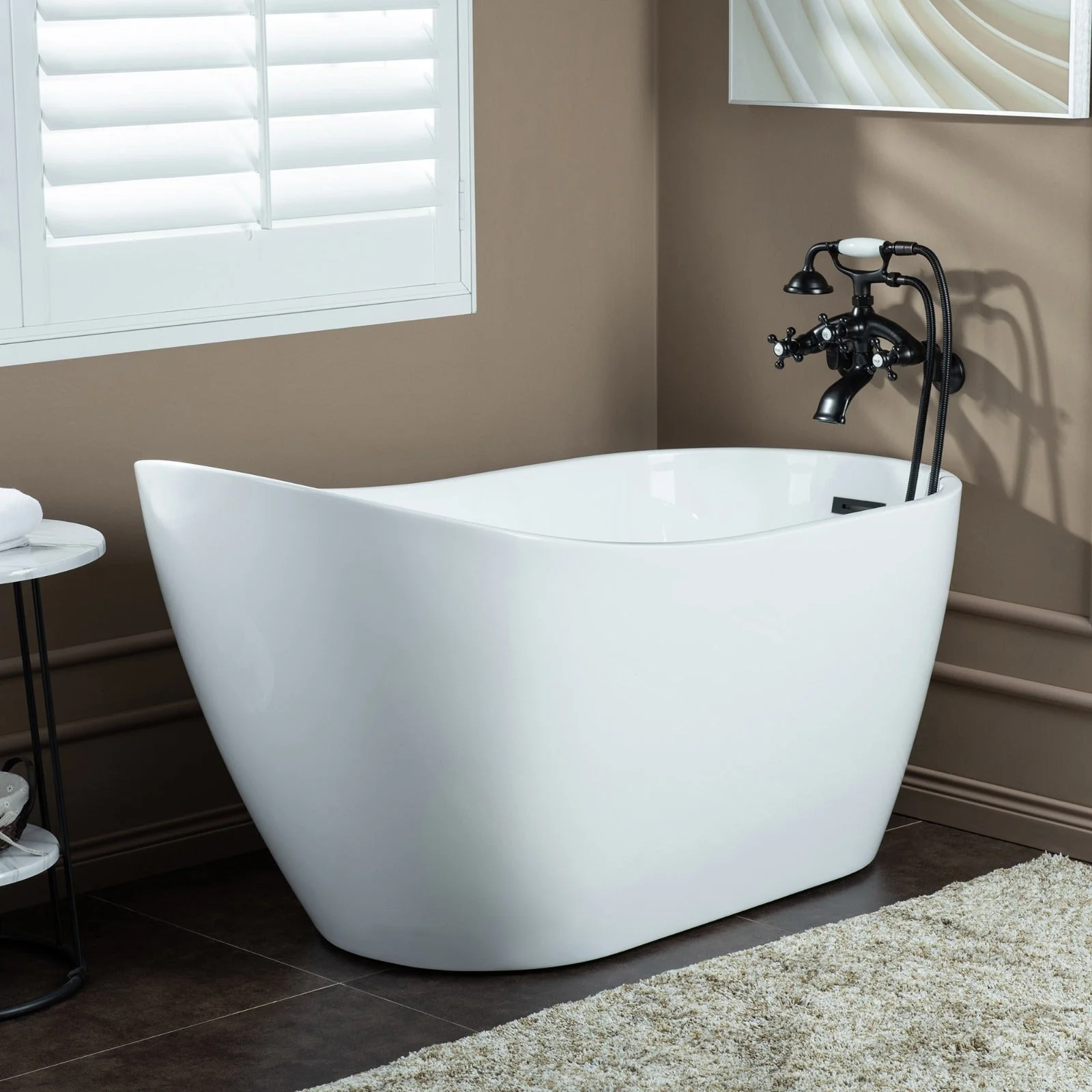

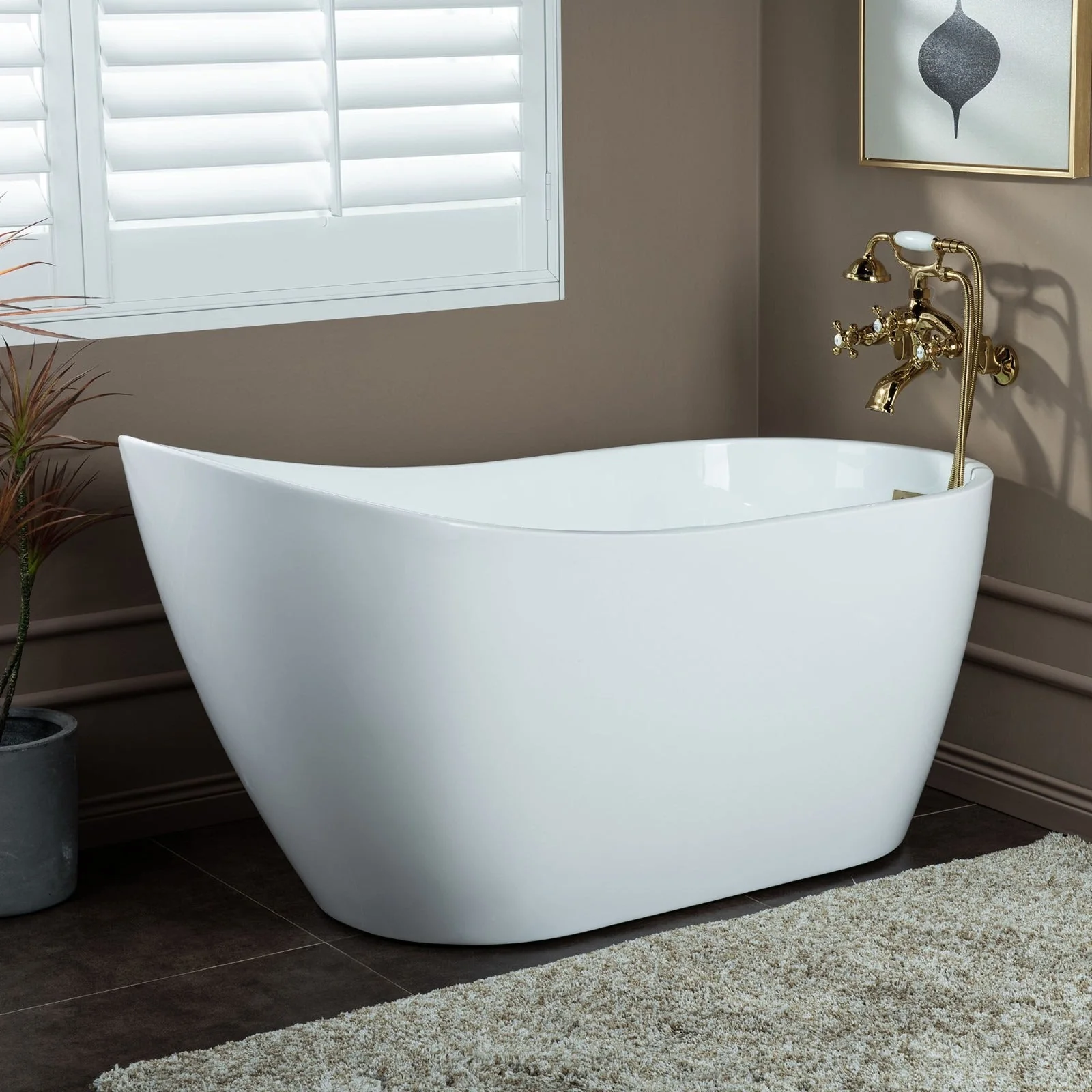

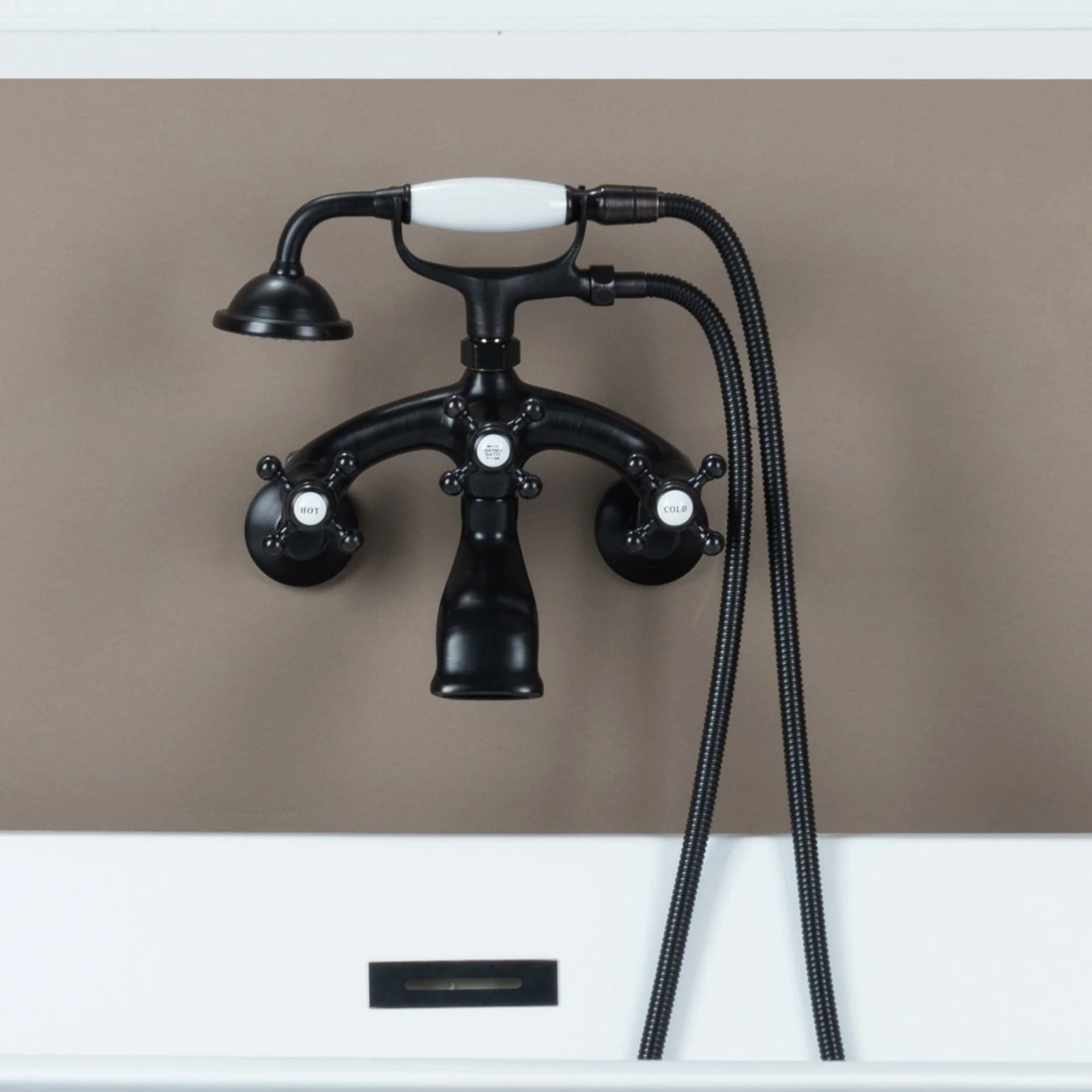

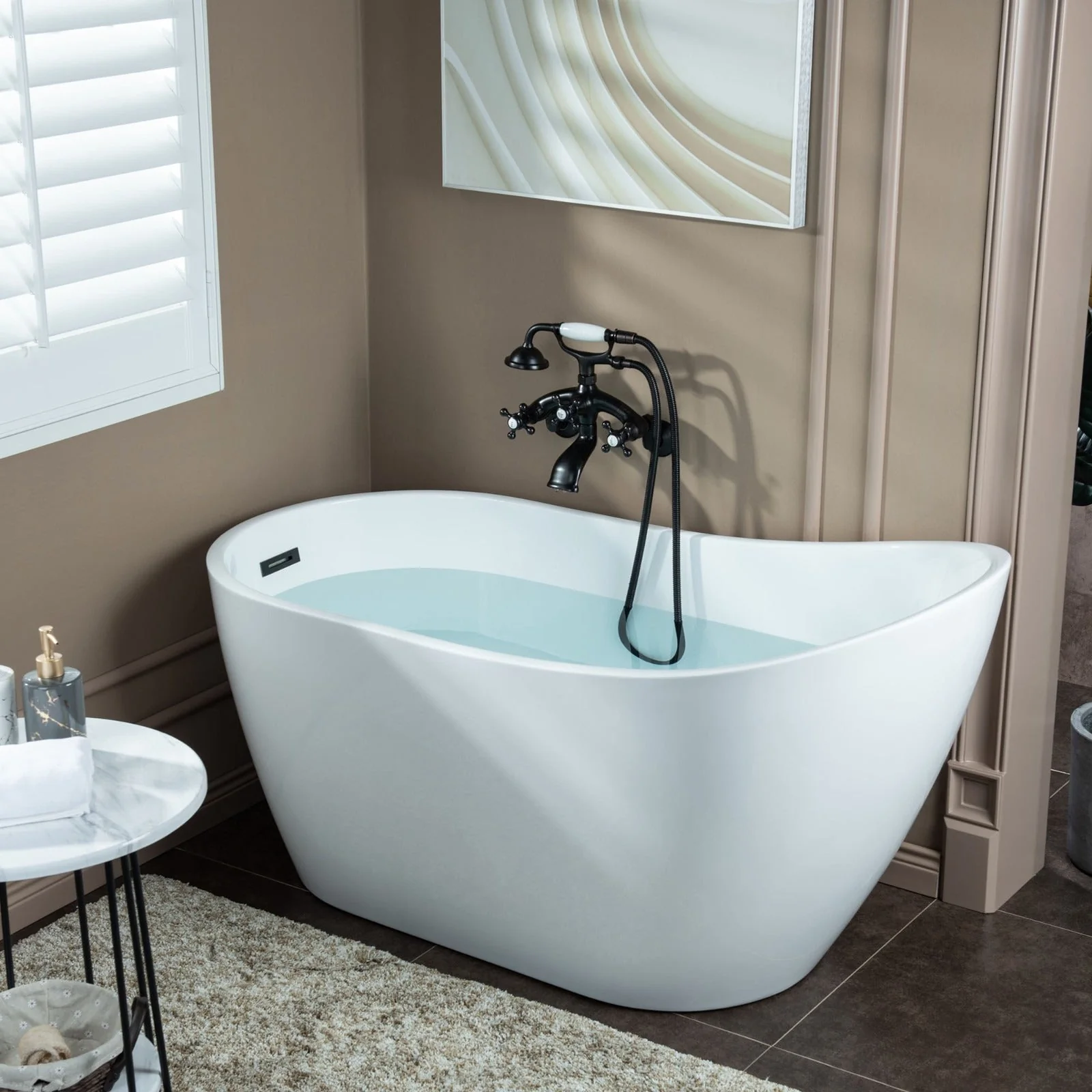

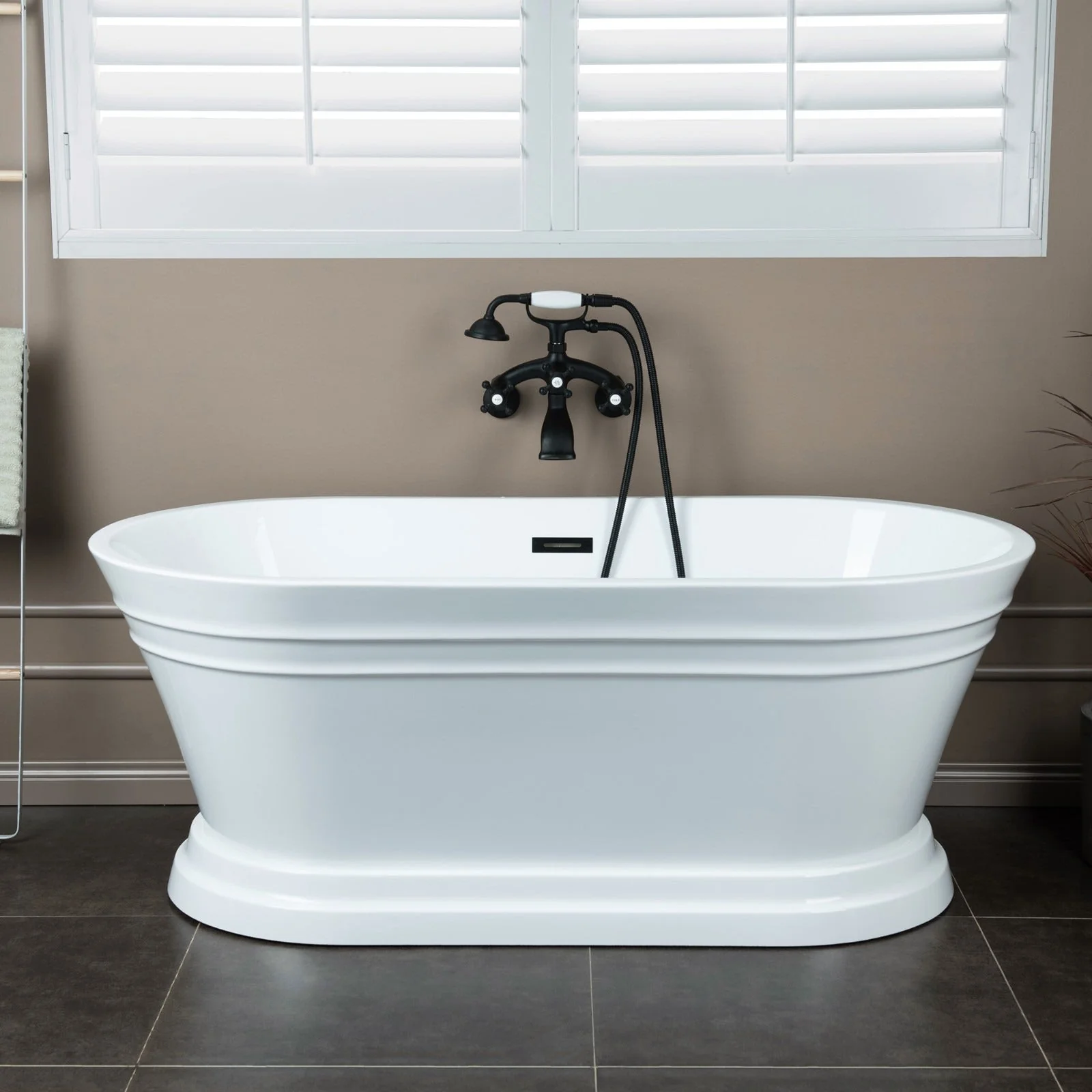

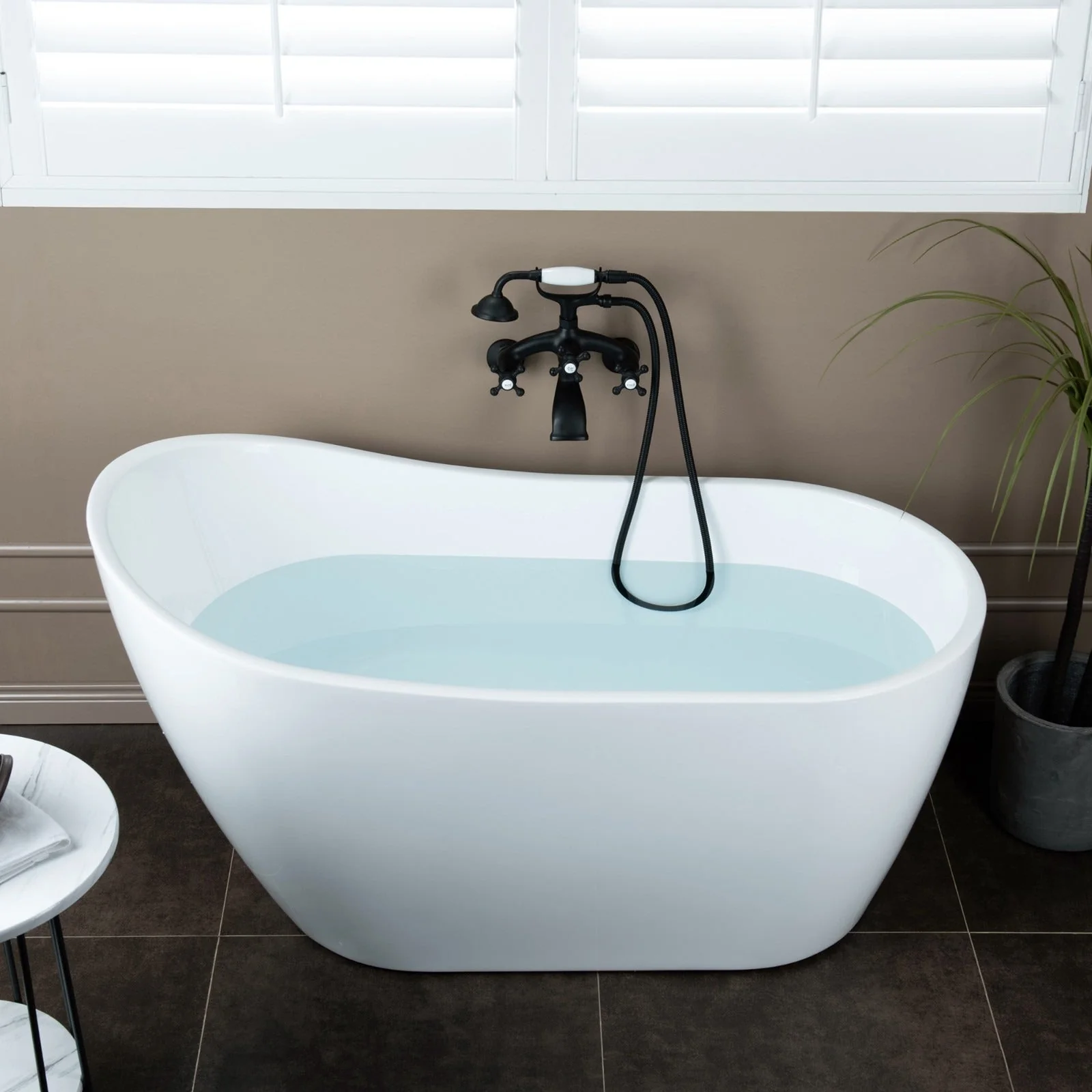

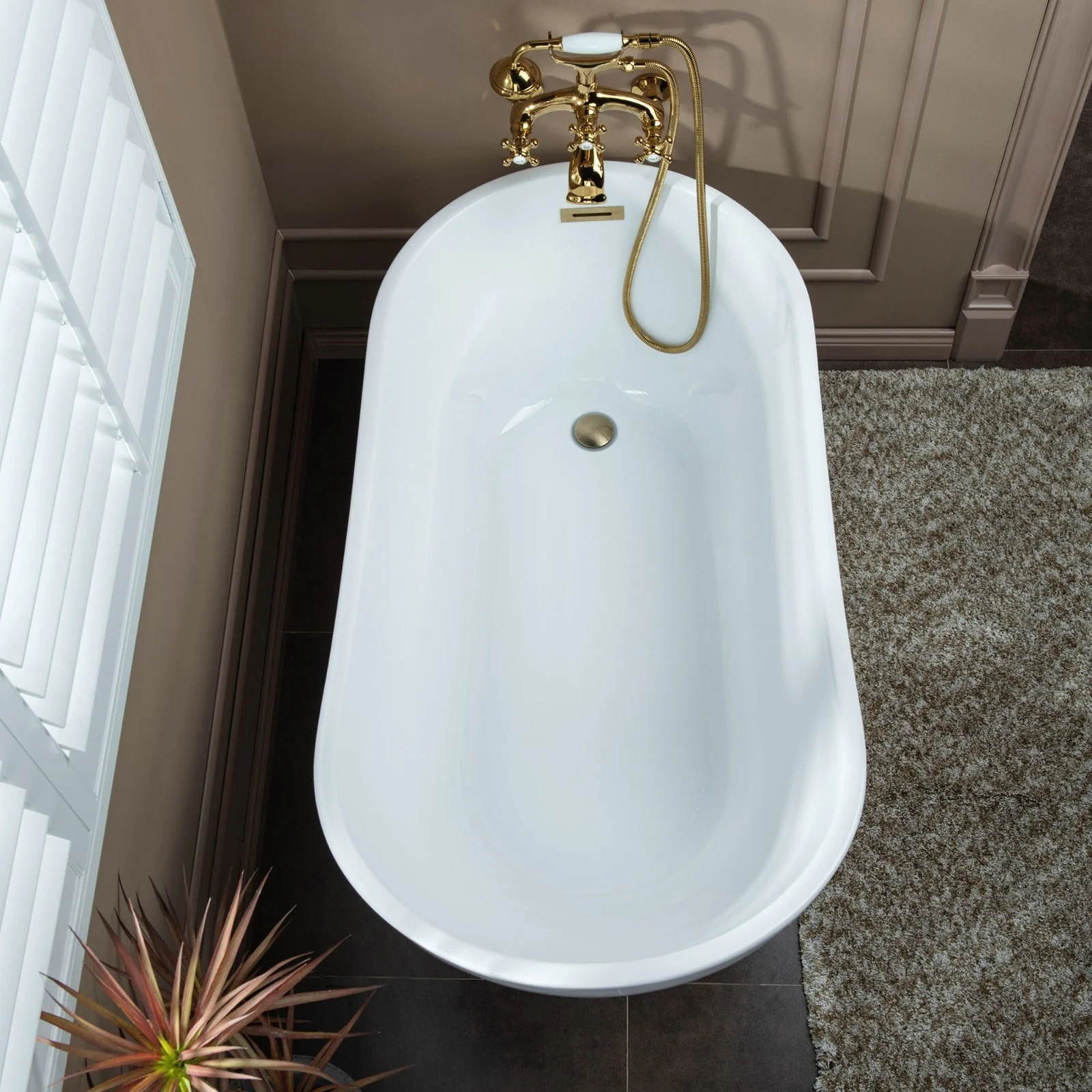

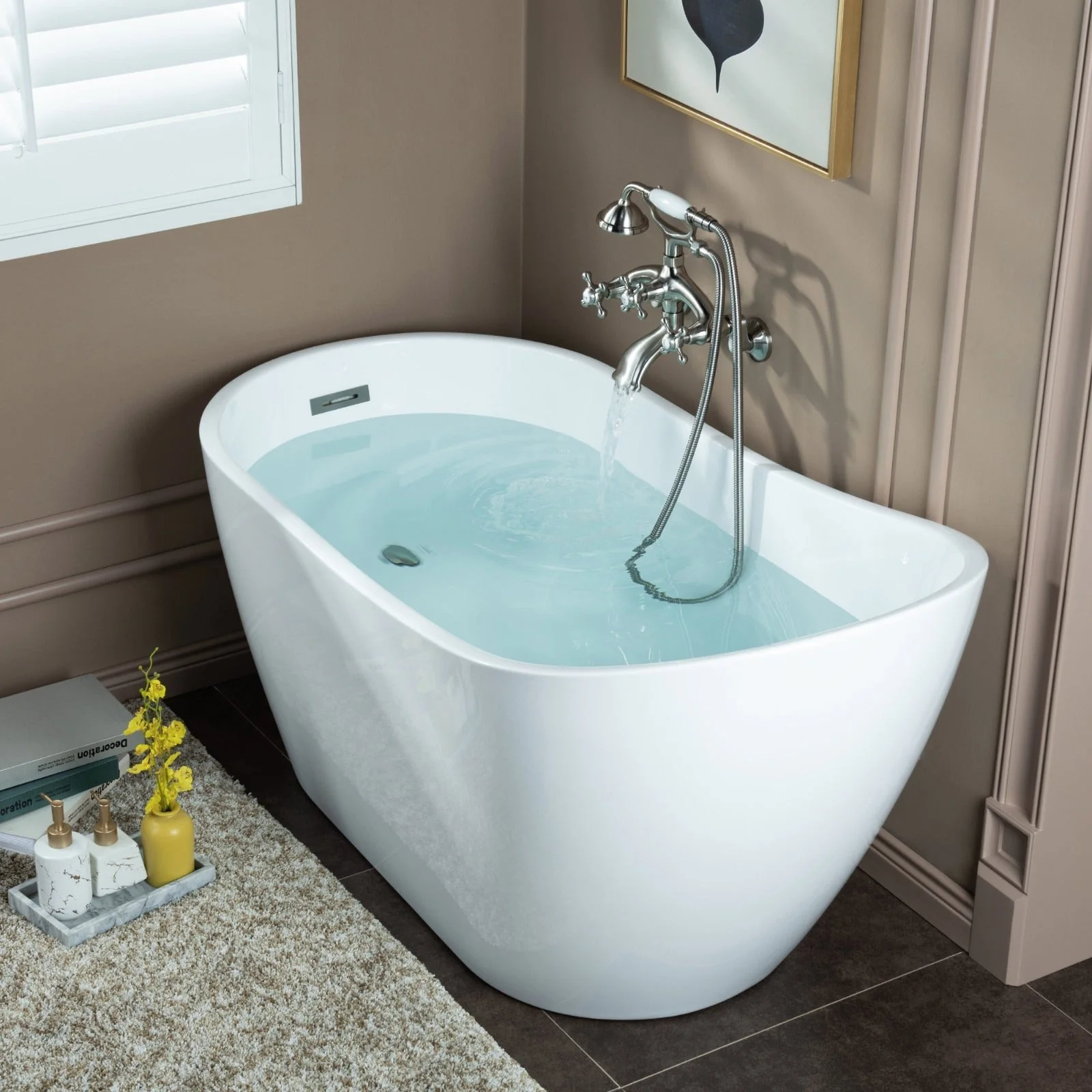

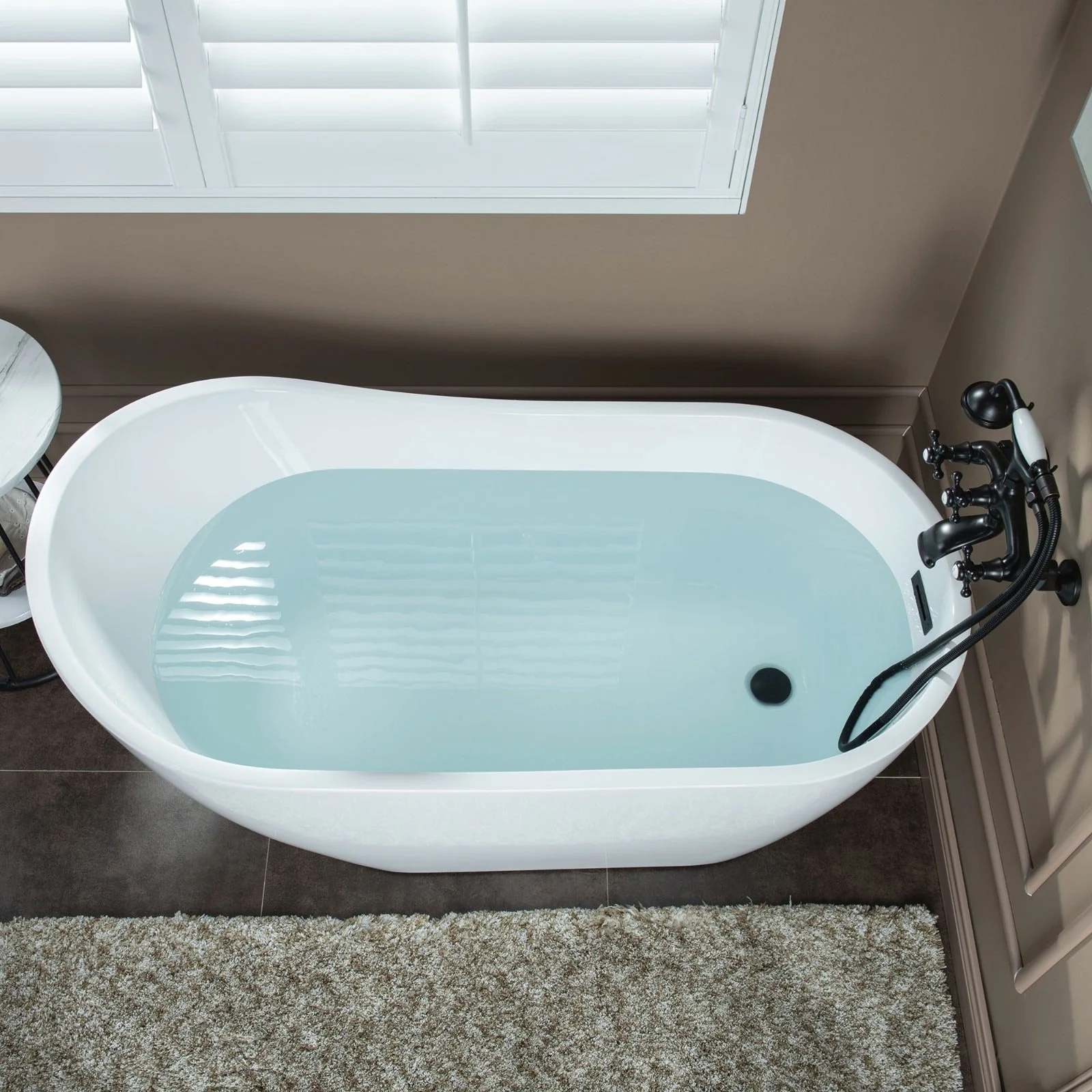

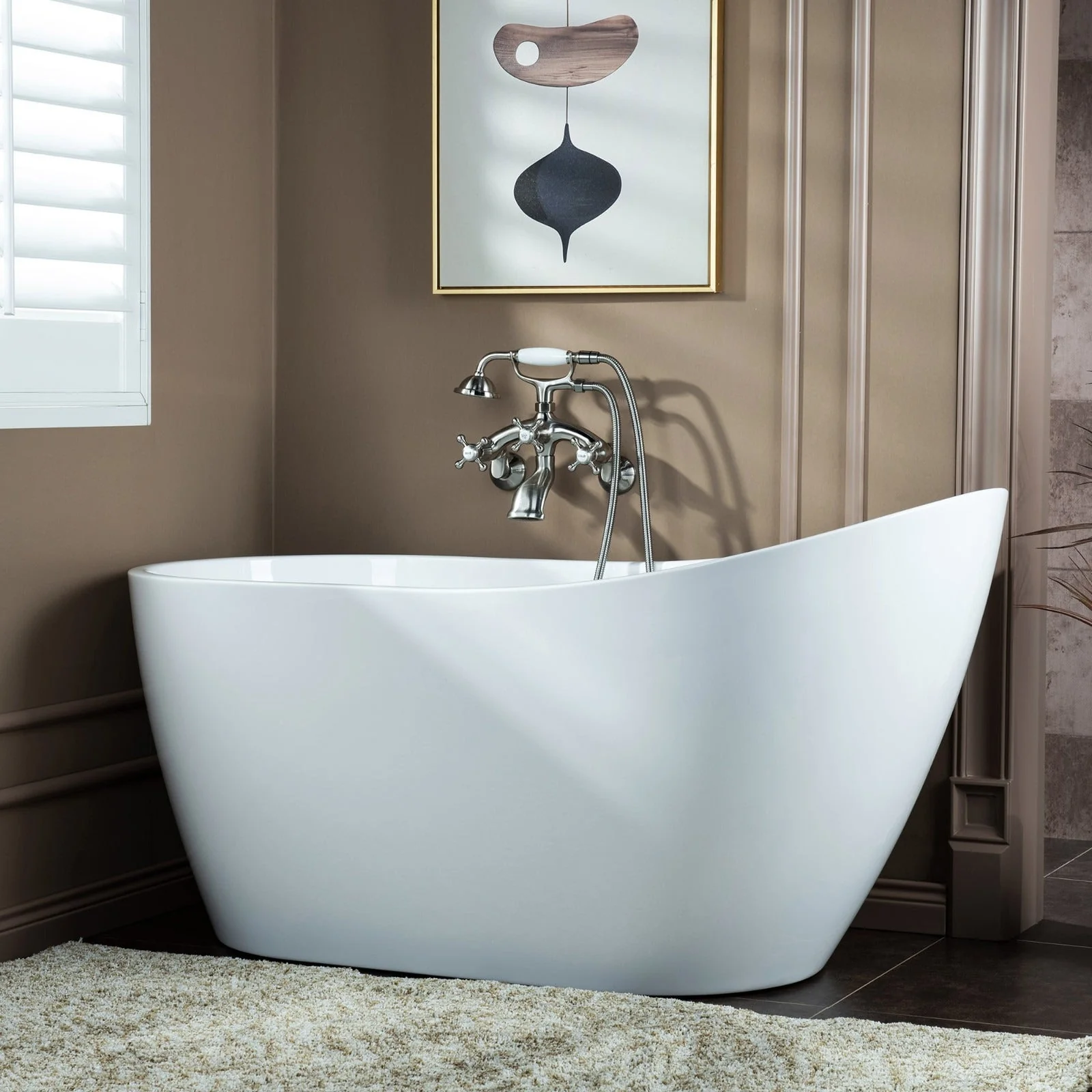

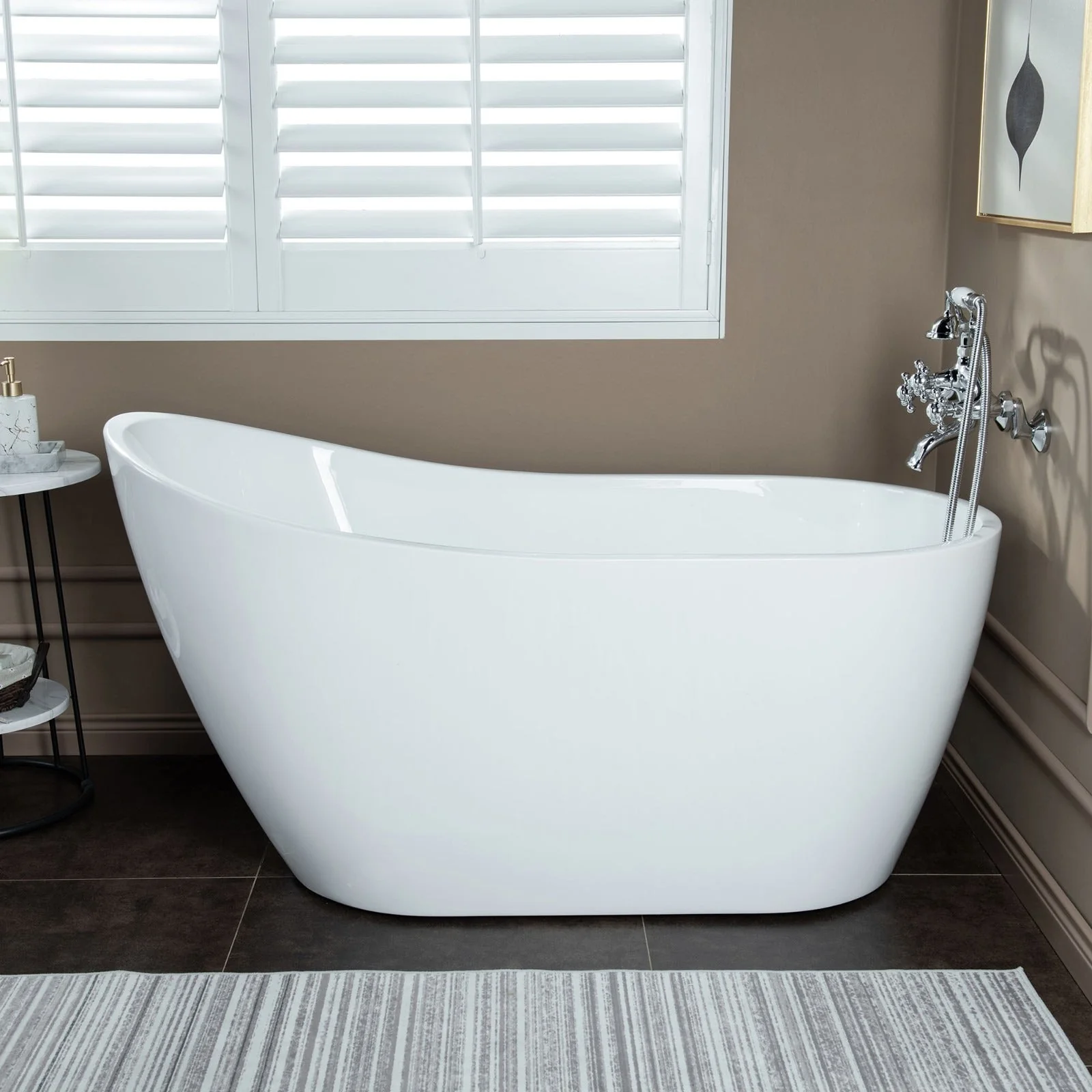

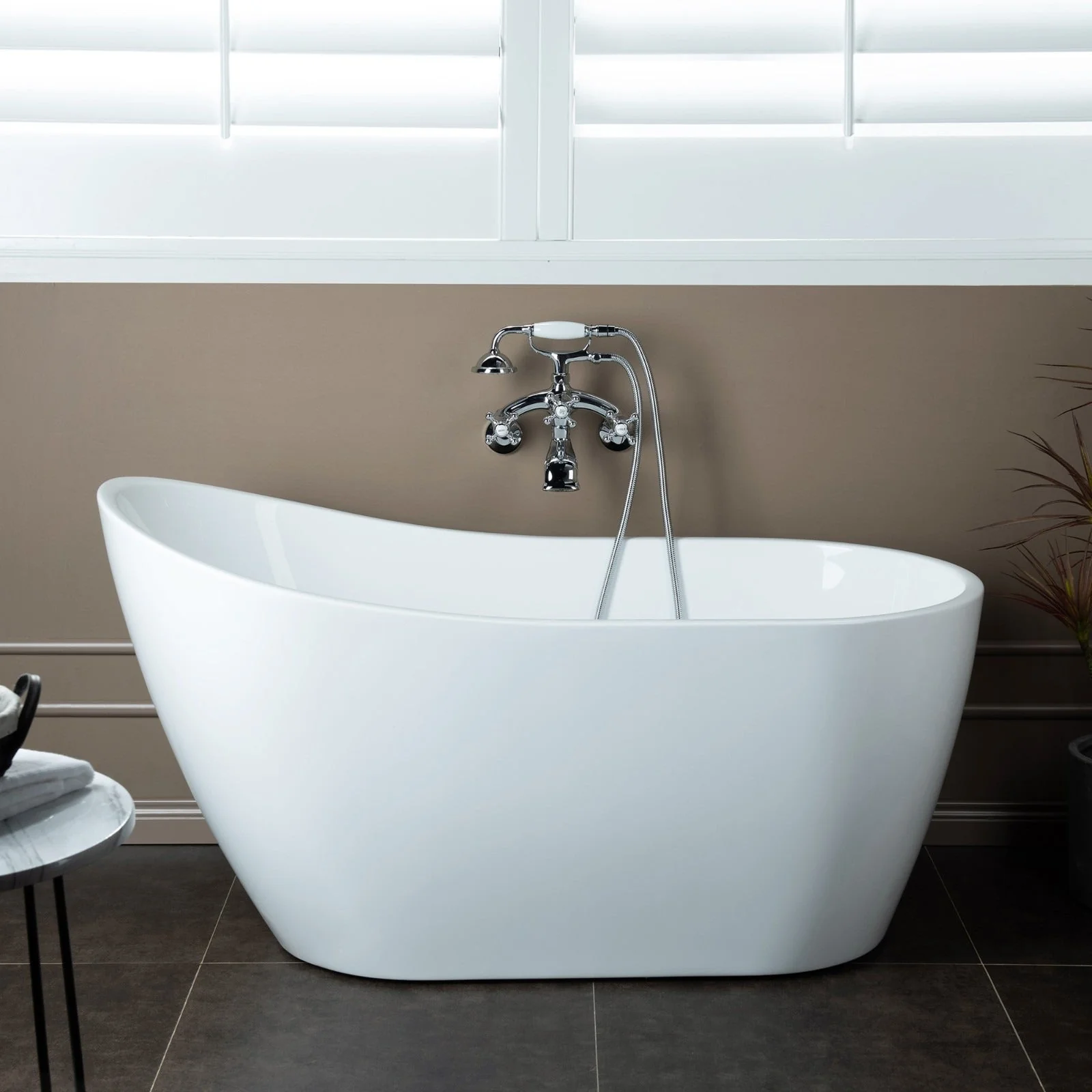

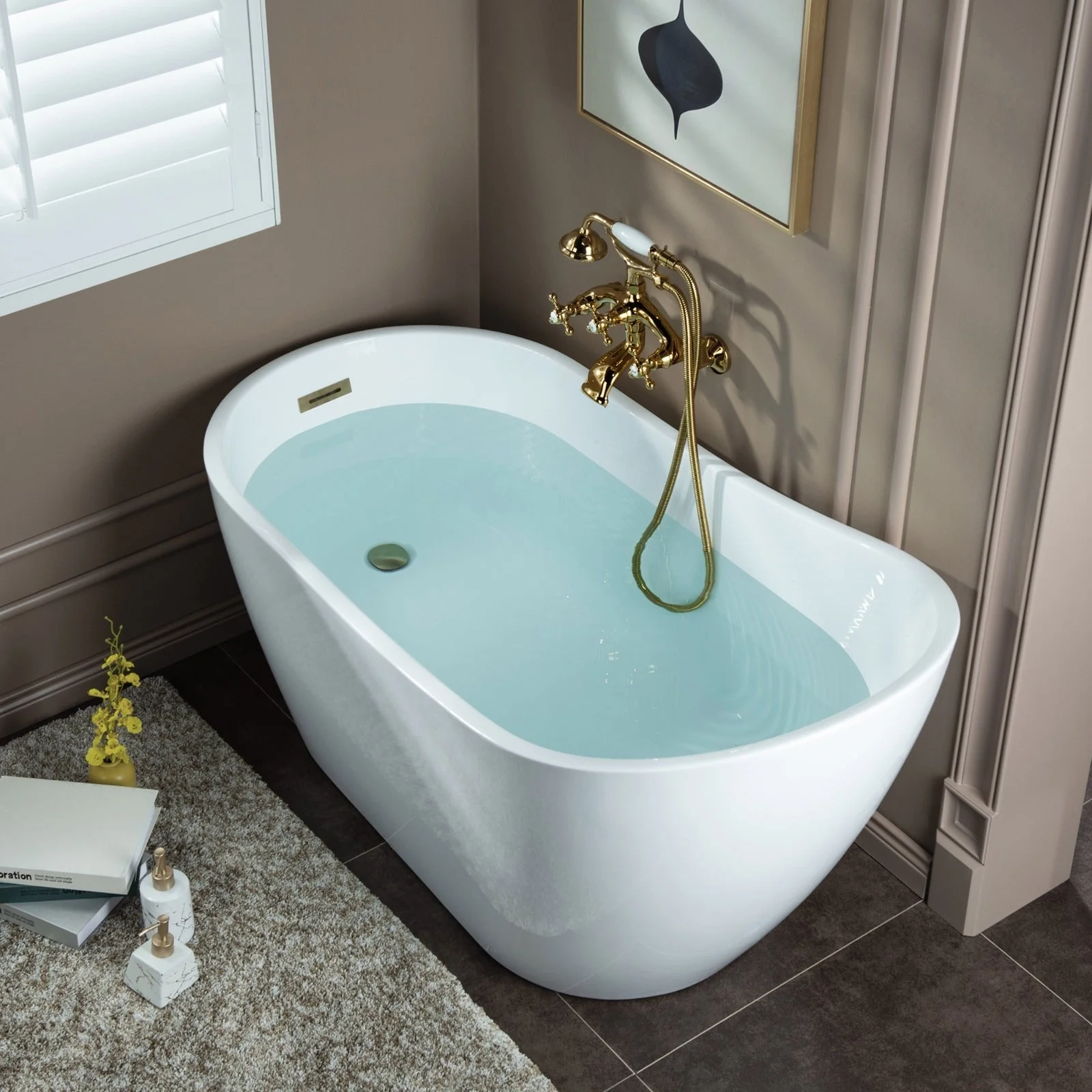

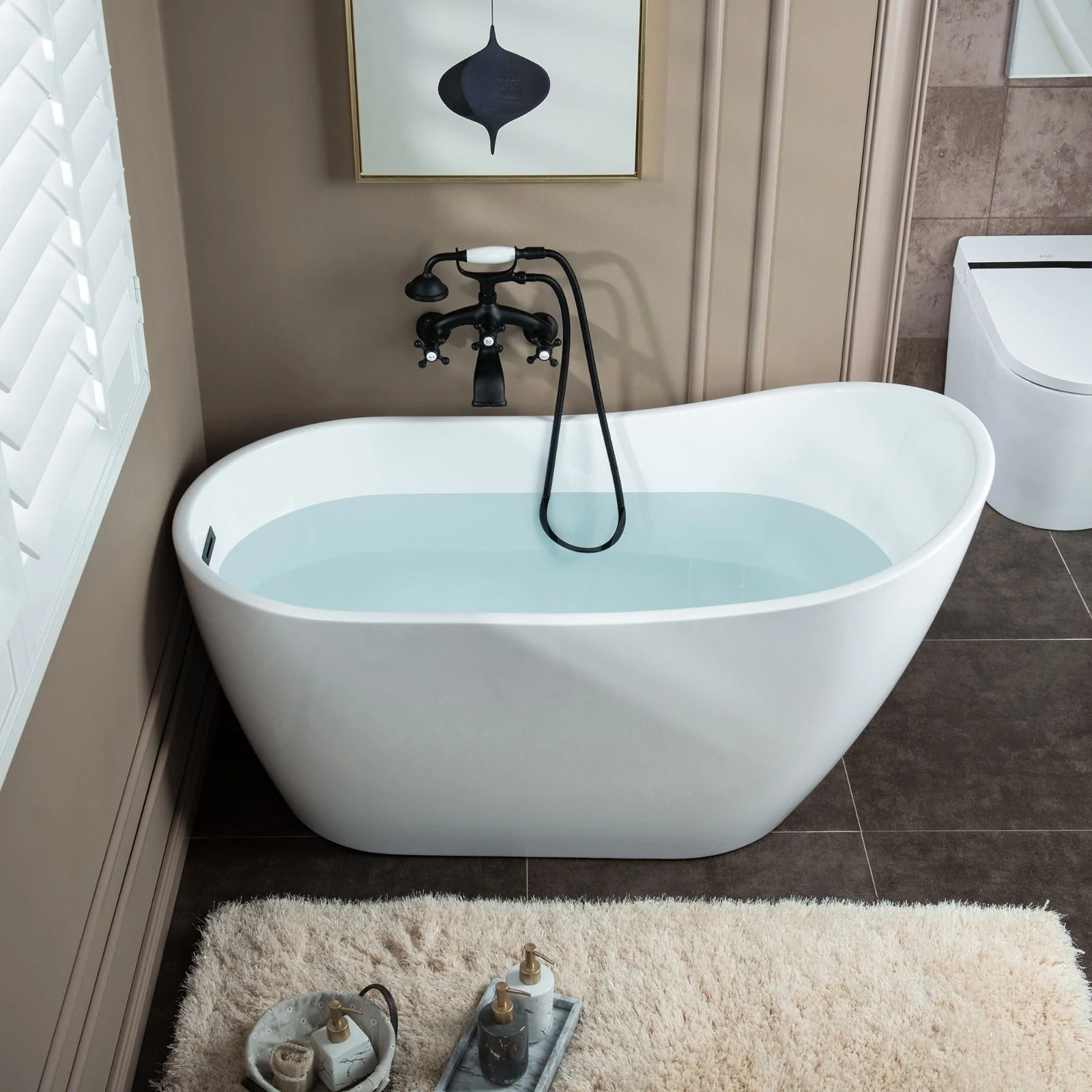

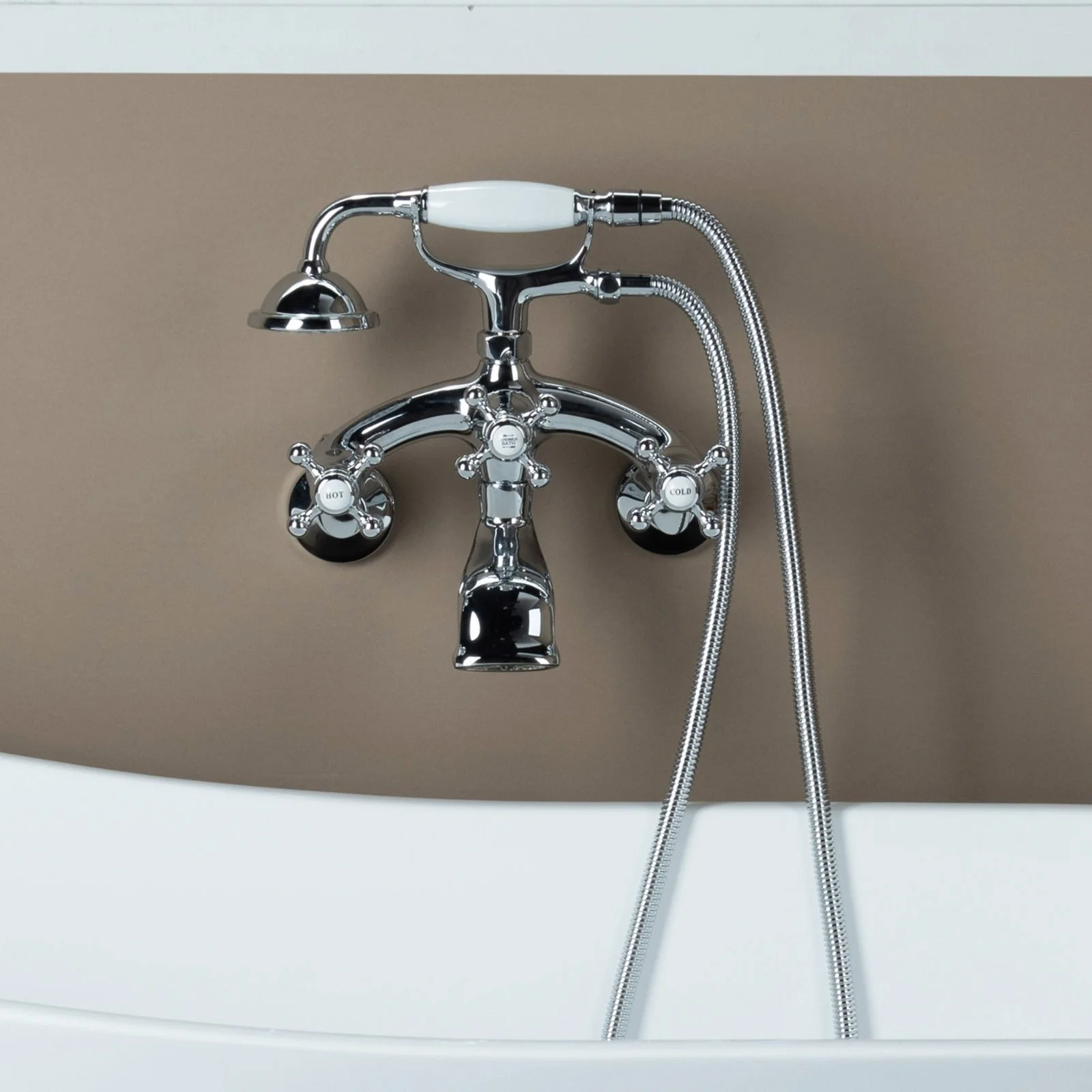

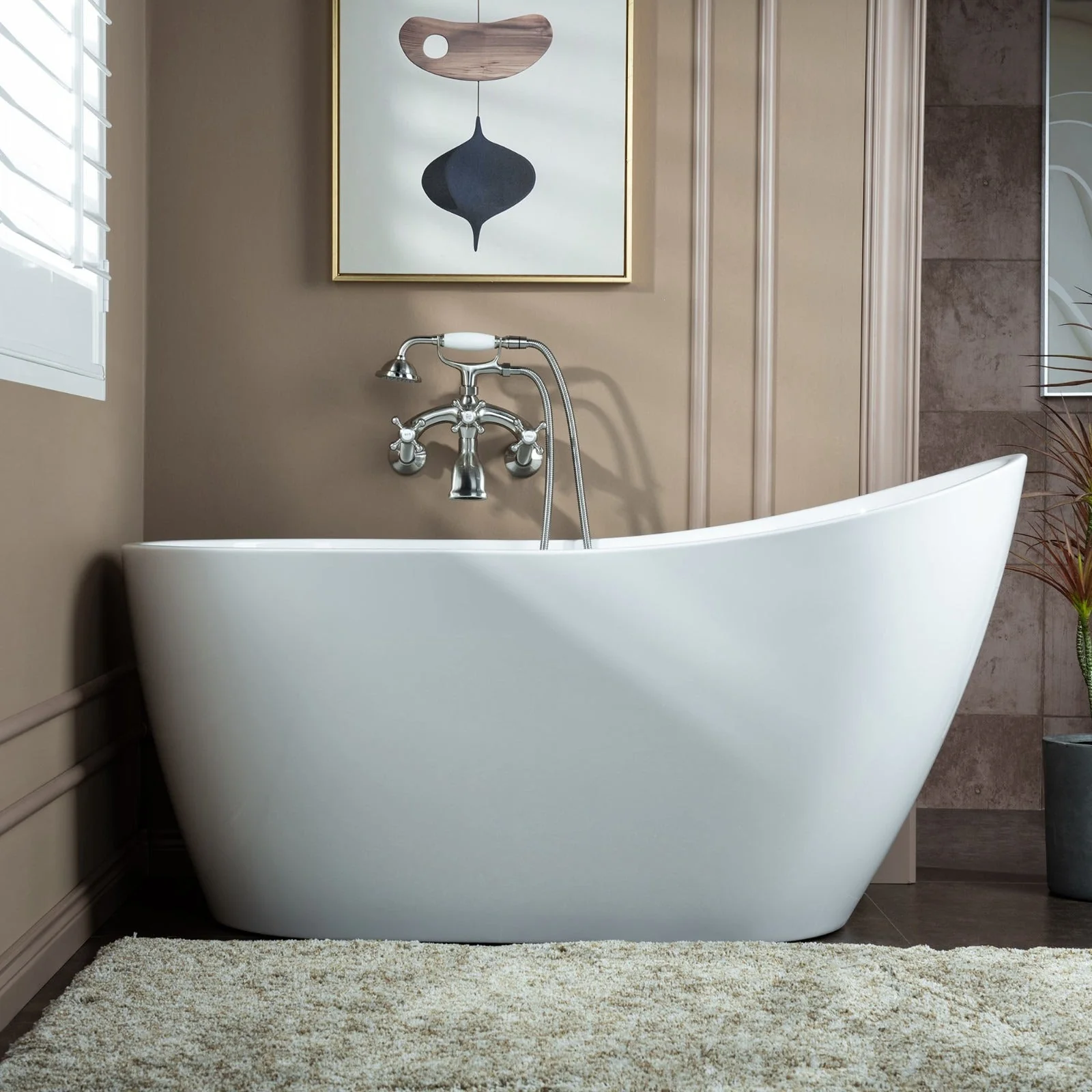

WOODBRIDGE Wall Mount Adjustable Centers Bathtub Faucet with 3 Metal Cross Handles and Telephone Style Hand Shower, F003

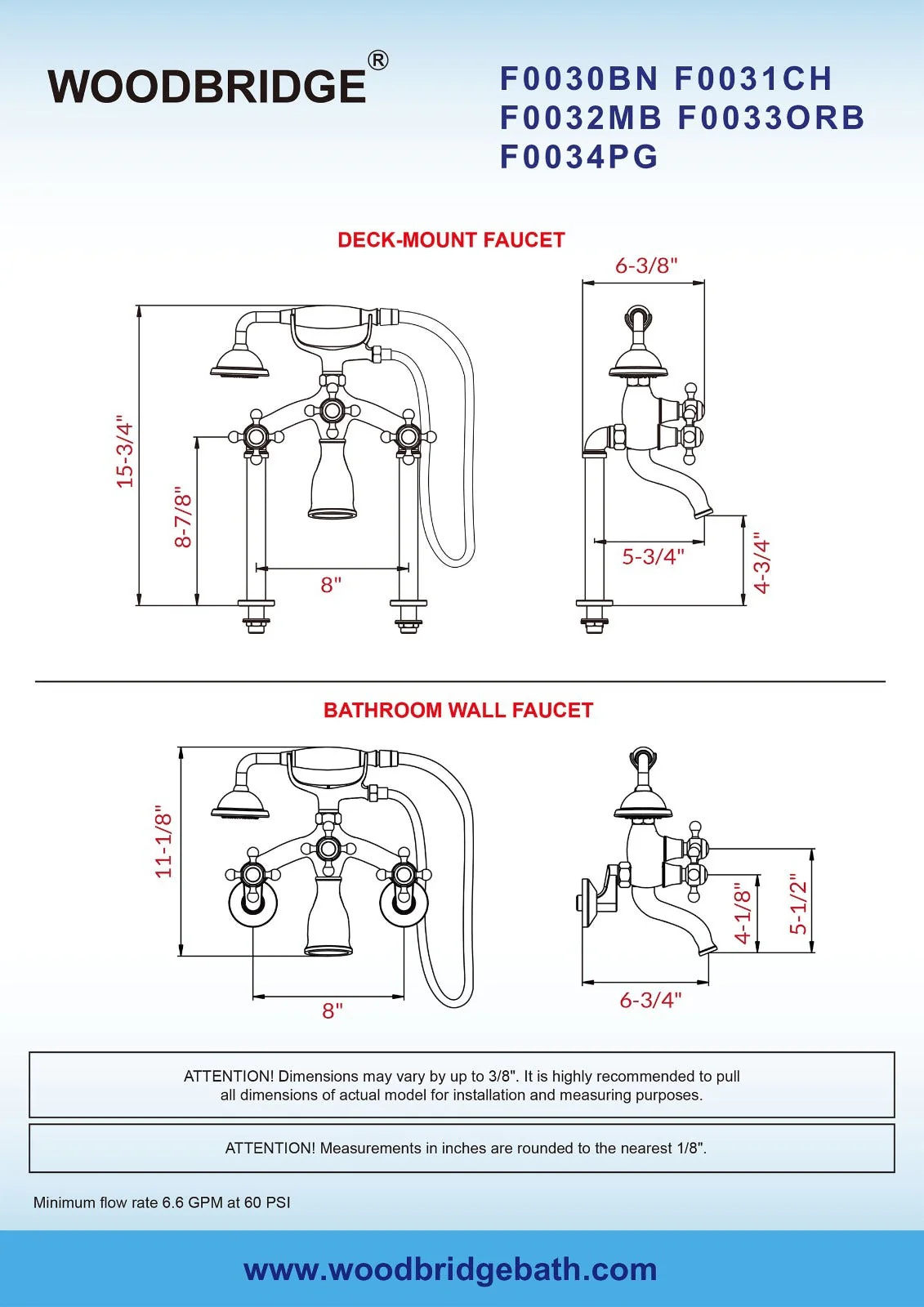

[ DIMENSIONS AND SPECIFICATIONS ]: Overall Size : (L) 8" x (W) 6-3/4" x (H) 15-3/4".  Spout Reach (Deck Mount) : 5-3/4", Spout Reach (Wall Mount) : 6-3/4", Spout Clearance (Deck Mount): 4-3/4"

[ PREMIUM QUALITY CONSTRUCTION ]: Faucet body is solid brass construction, hand shower, elbows and risers are made of Stainless Steel , drip free ceramic disc cartridge and standard 1/2" IPS connection

[ DESIGN INSPIRATION ]:  Victorian style faucet body with telephone style hand shower with porcelain wand and classical 1/4 turn metal cross handles, package come with wall mount elbow that fits 3-3/8" to 8" center spread and riser kit for deck mount installation.

[ HANDSHOWER AND HOSE]: Single function hand shower with 60-inches hose is handy for rinsing down the tub or just rinsing off after a bath

[ FLOW RATE]: Max spout flow rate 8.5 GPM at 80 PSI,Max hand shower flow rate 1.8 GPM AT 80 PSI

[ DUAL MOUNT DESIGN]:  Wall mount elbow for adjustable center spread from 3-3/8 inches to 8-inches and deck mount riser for 8-inch spread.

[ PACKAGE CONTENT]: Contain faucet body, 3 metal cross handle, hand shower with matching hose, wall mount elbow set, deck mount riser kit and installation manual.

[ CERTIFICATION & WARRANTY ]: Products are compliance with ASME A112.18.1-2018 and CSA B125,1-18. WOODBRIDGE offers 1-Year limited warranty on product to be free of defects of material and workmanship and WOODBRIDGE  US based product support team is happy to assist with any sales or product queries.

Specifications

Item Model Number	F0030BN
Finish	Brushed Nickel
Shower Hose Material	Stainless Steel
Product Dimensions	Overall Height 15.75 Inches Spout Clearance 4.75 Inches Spout Reach 6.75 Inches Bathtub Filler - Max flow rate 8.5 GPM Hand Shower - Max flow rate 1.8 GPM
Product Weight	12 Pounds
Package Dimensions	31 X 10 X 9 Inches
Package Weight	12 Pounds
Shipping with Pallet	N
Shipping Dimensions	31 X 10 X 9 Inches
Shipping Weight	12 Pounds
Item Package Quantity	1
